7705-MTC-2 50 Pin Male to Female DSUB Cable

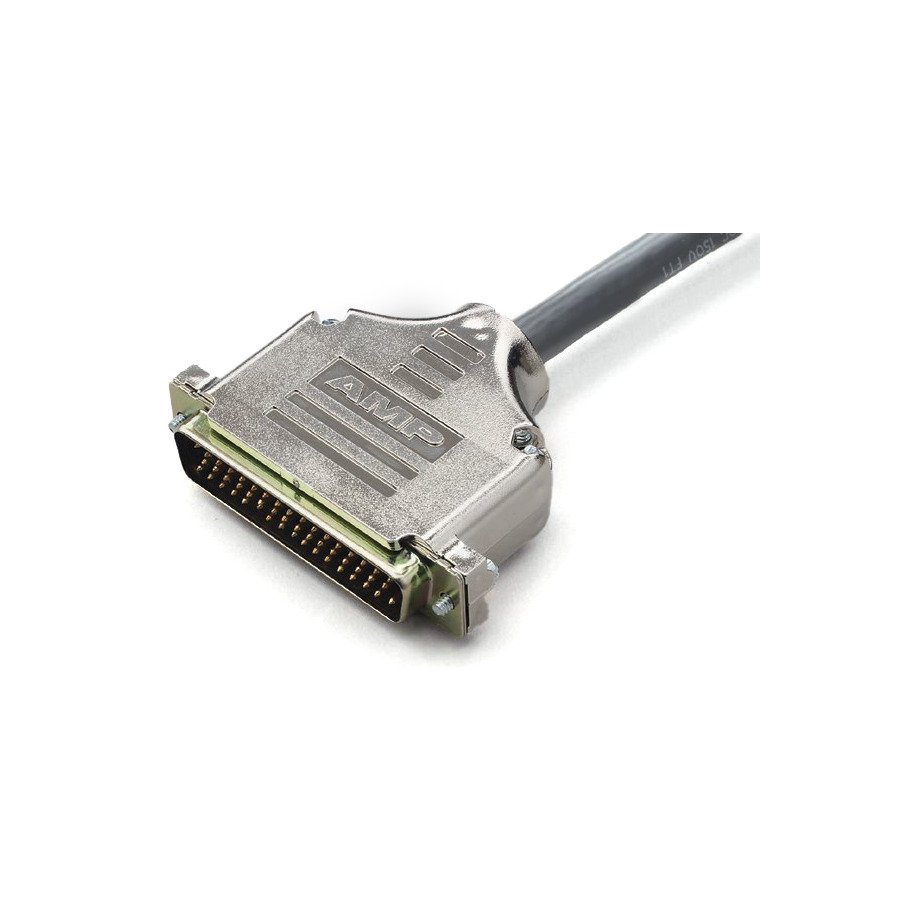

The 7705-MTC-2 is a 50-pin male-to-female D-Sub cable assembly that establishes one-to-one connections between mating connectors on Keithley switching modules. This 2-meter (6.6 ft) cable delivers straightforward interconnection for Models 7701, 7703, 7705, and 7707, with each pin on the male connector wired directly to its corresponding pin on the female connector.

– Technical Specifications

• Connector Type: 50-pin D-Sub (male to female)
• Cable Length: 2 meters (6.6 ft)
• Maximum Voltage Rating: 300 VDC or RMS
• Maximum Current Rating: 2 A
• Weight: 1.845 lbs

– Key Features

• One-to-one pin mapping ensures predictable signal routing without cross-connects or pin remapping.
• Rated for 300 VDC or RMS operation at up to 2 A switched current.
• Direct mating with standard 50-pin D-Sub connectors eliminates adapter requirements.
• Connector shells support safety earth grounding when hazardous voltages exceed 30 VRMS, 42.4 V peak, or 60 VDC.

– Typical Applications

Interconnection between Keithley switching modules and external test instrumentation or measurement systems requiring high pin-count, low-impedance signal distribution. Suitable for signal switching, matrix routing, and relay control circuits operating within 300 V and 2 A limits.

– Compatibility & Integration

This cable mates with the 50-pin D-Sub connectors on Keithley Models 7701, 7703, 7705, and 7707 switching modules. Safe operation requires both cable ends to be connected before power application and all system power to be removed before any connection or disconnection. When hazardous voltages are present, both D-Sub connector shells must be connected to safety earth ground.
