Abaco Systems / Condor Engineering CEI520A-0816 ARINC Interface for PCI

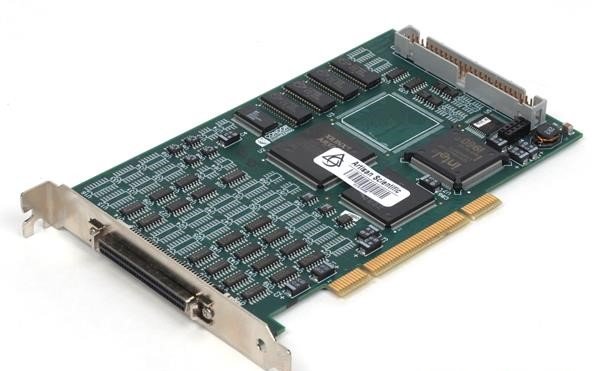

The Abaco Systems / Condor Engineering CEI520A-0816 is an ARINC interface card designed for PCI bus systems, providing comprehensive databus functionality for ARINC 429 and related avionics protocols. It is engineered to support maximum data throughput across all its channels, integrating features such as on-board message scheduling, label filtering, multiple buffering options, time-tagging, and error injection/detection. This interface also includes avionics-level I/O discretes, with optional programmable receive level thresholds and adjustable transmit output voltages available for enhanced customization.

### Technical Specifications

**ARINC 429 Receive Channels:**
* **Number of Channels:** Up to 16
* **Data Rates:** 12.5 KHz or 100 KHz
* **Standard Input Levels:** ± 6.5 to ±13 VDC (A to B)
* **Parametric Threshold Levels:** ± 0.1 to ± 13.5 VDC (A to B)
* **Filtering:** Label and/or SDI
* **Parity:** Odd, even, or none
* **Error Reporting:** Parity

**ARINC 429 Transmit Channels:**
* **Number of Channels:** Up to 16
* **Data Rates:** 12.5 KHz or 100 KHz
* **Automatic Slew Rate Adjustment:** Supported
* **Standard Output Level:** ±10 VDC (A to B)
* **Parametric Output Voltages:** 0 to ±10 VDC (A to B)
* **Parity:** Odd, even, or none
* **Error Injection Option:** Parity, gap, high or low bit count

**Discrete Inputs:**
* **Number of Inputs:** 0, 8, or 16
* **Compatibility:** Supports avionics-level (open/ground or high/low) and TTL/CMOS

**Discrete Outputs:**
* **Number of Outputs:** 0, 8, or 16
* **Type:** Low side switches, each capable of sinking 0.5 ampere

**Architecture:**
* **Processor:** 100 MHz Intel 80960
* **On-board RAM:** 2 MBytes
* **Data Buffering:** Intelligent interface with large buffers
* **Receive Data Buffering Methods:**
* **Buffered Mode:** Utilizes a separate circular buffer for each channel
* **Merged Mode:** Combines all received data into a single, time-sequenced circular buffer
* **Dedicated Mode:** Provides a snapshot of the very latest data
* **Message Handling:** On-board message scheduling, label filtering, multiple buffering options, time-tagging
* **Channel Operation:** Fully independent channel operation

**Physical and Environmental:**
* **Form Factor:** PCI short card (6.8 in. x 4.2 in.)
* **Operating Temperature Range:** 0 to +70°C (Commercial)
* **Extended Operating Temperature Range:** Available

**Electrical:**
* **Power (typical):**
* +5 VDC: 780 mA
* +12 VDC: 100 mA
* -12 VDC: 100 mA
* **PCI Signaling Voltage Compatibility:**
* 5V Signaling (CEI-520)
* Universal signaling (3.3V or 5V) (CEI-520A)
* Compatible with PCI-X 1.0 and PCI slots

**Software and API:**
* **API:** Includes high-level API for Microsoft Windows, Linux, and VxWorks
* **Supported Languages/Environments:** C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, and LabWindows/CVI sample programs
* **GUI Analyzer:** Optional BusTools/ARINC Windows-based GUI bus analyzer available

**Supported Protocols (Beyond ARINC 429):**
* ARINC 419, 561, 571, 573, 575, 582, 717, and CSDB
* ARINC 573/717 Bi-Polar RZ and Harvard Bi-Phase
