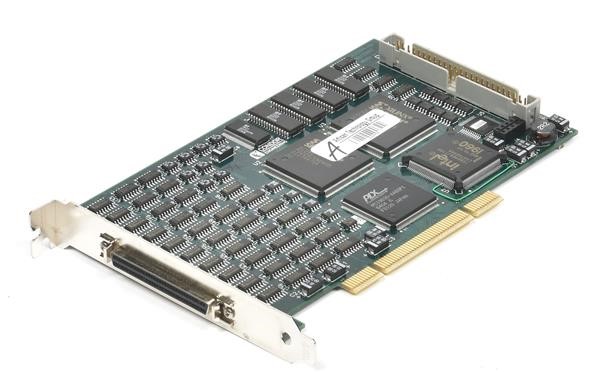

Abaco Systems / Condor Engineering CEI520A-1608 ARINC Interface for PCI

The Abaco Systems / Condor Engineering CEI520A-1608 is an ARINC interface card designed for PCI bus systems, targeting simulation, test, and data logging applications. This intelligent interface offers comprehensive databus functionality for ARINC 429 and related avionics protocols. It features a high-performance processor and large buffers to support maximum data throughput across its channels, enabling on-board message scheduling, label filtering, and time-tagging. The CEI520A-1608 is designed for integration into test and simulation environments requiring robust ARINC communication capabilities.

### Technical Specifications

**General**
* **Manufacturer:** Abaco Systems / Condor Engineering
* **Model:** CEI520A-1608
* **Product Family:** CEI520 / CEI520A
* **Form Factor:** PCI

**Interfaces and Channels**
* **ARINC Channels:** Up to 16 Receive (Rx) and 16 Transmit (Tx) ARINC 429 channels.
* **Protocol Support:** ARINC 429, and optionally ARINC 419, 561, 571, 573, 575, 582, 717, and CSDB.
* **Discrete I/O:** Avionics-level I/O discretes are supported.
* Discrete Inputs: Up to 16, supporting avionics-level (open/gnd or high/low) and TTL/CMOS.
* Discrete Outputs: Up to 16, capable of sinking 0.5 ampere each, functioning as low-side switches.

**Performance and Processing**
* **Processor:** 100 MHz Intel 80960.
* **Memory:** 512 KB shared memory.
* **Buffering:** Intelligent interface with large buffers for efficient data handling.
* **Data Throughput:** Supports maximum data throughput on all channels simultaneously.
* **Message Handling:** On-board message scheduling, label filtering, multiple buffering options, and time-tagging.
* **Error Handling:** Error injection and detection capabilities are included.
* Error Injection Option: Parity, gap, high or low bit count.
* Error Reporting: Parity.

**Electrical**
* **PCI Signaling Voltage Compatibility:** Universal signaling (3.3V or 5V). Compatible with PCI-X 1.0 and PCI slots.
* **Power Requirements:**
* +5 VDC: 780 mA (typical)
* +12 VDC: 100 mA
* -12 VDC: 100 mA
* *Note:* The card generates 3.3V on-board as mandated by the PCI specification, accommodating systems that may not provide this voltage to the PCI slot.

**Physical**
* **Form Factor:** PCI short card.
* **Dimensions:** 6.8 inches x 4.2 inches.
* **Operating Temperature Range:** 0 to +70°C (Commercial). Extended operating temperature range is available.

**Software and API**
* **API:** Advanced, high-level software API included for Windows (XP, 2000, Me, NT, 98, 95), Linux (Kernel 2.4 and 2.6), VxWorks, Visual Basic, and LabWindows/CVI.
* **GUI:** An optional, easy-to-use BusTools/ARINC Windows-based GUI Bus Analyzer is available.

**Optional Features**
* Programmable receive level thresholds.
* Adjustable transmit output voltages (0 to ±10 VDC A to B).
* Ruggedized configurations.
* Extended operating temperatures.
* ARINC 573/717 Bi-Polar RZ and Harvard Bi-Phase.
* CSDB support.
