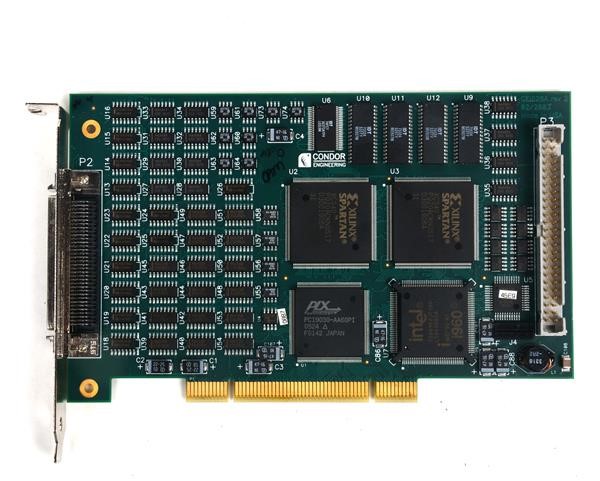

Abaco Systems / Condor Engineering CEI520A-1616P ARINC Interface for PCI

The Abaco Systems / Condor Engineering CEI520A-1616P is an ARINC interface card designed for PCI bus systems, offering comprehensive databus functionality for ARINC 429 and related avionics protocols. This intelligent interface card supports maximum data throughput across all channels, incorporating features such as on-board message scheduling, label filtering, multiple buffering options, time-tagging, and error injection/detection. It is equipped with avionics-level I/O discretes, and optional configurations include programmable receive level thresholds, adjustable transmit output voltages, and ruggedized versions for extended operating temperatures. The CEI520A-1616P also provides support for other 2-wire avionics protocols, including ARINC 419, 561, 571, 573, 575, 582, 717, and CSDB.

### Technical Specifications

* **Product Name:** CEI520A-1616P
* **Manufacturer:** Abaco Systems / Condor Engineering
* **Interface:** PCI Bus
* **Supported Protocols:**
* ARINC 429
* ARINC 717
* ARINC 419
* ARINC 561
* ARINC 571
* ARINC 573
* ARINC 575
* ARINC 582
* CSDB (Common Serial Data Bus)
* **Channels:**
* Up to 16 Receive (Rx) ARINC 429 Channels
* Up to 16 Transmit (Tx) ARINC 429 Channels
* **Data Rates:** 12.5 KHz or 100 KHz
* **Discrete I/O:**
* Up to 16 Input (In) Discretes
* Up to 16 Output (Out) Discretes
* Avionics-level I/O discretes
* Input discretes support TTL to avionics voltage levels.
* Output discretes can switch up to 0.5 ampere.
* **Performance Features:**
* Maximum data throughput on all channels simultaneously.
* On-board message scheduling.
* Label filtering.
* Multiple buffering options.
* Time-tagging.
* Error injection/detection.
* Fully independent channel operation.
* High performance processor.
* Intelligent interface with large buffers.
* **Signal Levels:**
* Standard input levels: ± 6.5 to ±13 VDC (A to B).
* Parametric threshold levels: ± 0.1 to ± 13.5 VDC (A to B).
* Standard output level: ±10 VDC (A to B).
* Parametric output voltages: 0 to ±10 VDC (A to B).
* Programmable receive level thresholds.
* Adjustable transmit output voltages.
* **Parity:** Odd, even, or none.
* **Error Reporting:** Parity error reporting.
* **Power Considerations:**
* CEI-520A supports universal PCI voltage signaling (3.3V or 5V).
* CEI-520 supports 5V only.

### Interfaces

* **Host Interface:** PCI (Peripheral Component Interconnect)
* **Databus Connectors:** Specific connector types are detailed in the user manual, with references to 68-pin receptacle connectors (SCSI-3 compatible) and 50-pin IDC-style discrete I/O connectors.

### Software and API

* **API:** Advanced, high-level software API included.
* Supported Operating Systems: Windows (XP, 2000, Me, NT, 98, 95), Linux Kernel (2.4 and 2.6), VxWorks.
* Supported Programming Languages/Environments: C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, LabWindows/CVI.
* Includes sample programs for supported environments.
* **Bus Analyzer:** Easy-to-use BusTools/ARINC Windows-based GUI Bus Analyzer available.

### Physical and Environmental

* **Form Factor:** PCI Card
* **Ruggedization:** Ruggedized configurations with extended operating temperatures are optional.

### Compatibility

* **Operating Systems:** Windows (XP, 2000, Me, NT, 98, 95), Linux Kernel (2.4 and 2.6), VxWorks.
* **Development Environments:** C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, LabWindows/CVI.
