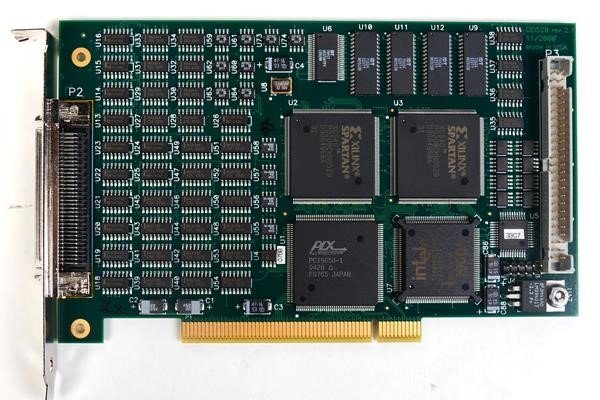

Abaco Systems / Condor Engineering CEI520A-88 ARINC Interface for PCI

The Abaco Systems / Condor Engineering CEI520A-88 is a PCI bus ARINC interface card designed for avionics databus functionality. This intelligent interface card provides robust connectivity for ARINC 429 and ARINC 717 protocols, alongside support for a range of other 2-wire avionics protocols. It is engineered for applications requiring precise databus monitoring, simulation, and testing within laboratory, embedded, and ruggedized environments. The CEI520A-88 offers on-board message scheduling, label filtering, multiple buffering options, time-tagging, and error injection/detection capabilities.

### Technical Specifications

* **Protocols Supported:**
* ARINC 429 (Primary protocol)
* ARINC 717
* Additional 2-wire avionics protocols: ARINC 419, 561, 571, 573, 575, 582, and CSDB
* **ARINC 429 Channels:**
* Up to 16 Receive (Rx) channels
* Up to 16 Transmit (Tx) channels
* Data rates: 12.5 KHz or 100 KHz
* Standard input levels: ± 6.5 to ±13 VDC (A to B)
* Parametric threshold levels: ± 0.1 to ± 13.5 VDC (A to B)
* Standard output level: ±10 VDC (A to B)
* Parametric output voltages: 0 to ±10 VDC (A to B)
* Parity: Odd, even, or none
* Filtering: Label and/or SDI
* Error reporting: Parity
* **ARINC 717 Support:** Supported in conjunction with ARINC 429 capabilities
* **Message Handling:**
* On-board message scheduling
* Label filtering
* Multiple buffering options: Buffered Mode (per channel circular buffer), Merged Mode (single time-sequenced circular buffer), Dedicated Mode (latest data snapshot)
* Time-tagging: 48-bit/100ns resolution
* Error injection/detection: Parity, gap, high or low bit count options available for transmit errors
* **Processor:** 100 MHz Intel 80960
* **Memory:** 512 KB shared memory (RAM) (Note: Some sources mention 2MB RAM for similar models, e.g., RAR-PCIE)

### Electrical Specifications

* **Power Consumption (typical):**
* +5 VDC: 780 mA
* +12 VDC: 100 mA
* -12 VDC: 100 mA
* **PCI Signaling Voltage Compatibility:**
* CEI-520A supports Universal PCI signaling (3.3V or 5V)
* Compatible with PCI-X 1.0 and standard PCI slots
* The CEI-520 (predecessor) supports 5V PCI only

### Interfaces

* **Discrete Inputs:**
* 0, 8, or 16 inputs available in various configurations
* Supports avionics-level (open/ground or high/low) and TTL/CMOS voltage levels
* **Discrete Outputs:**
* 0, 8, or 16 outputs available in various configurations
* Low-side switches capable of sinking 0.5 ampere each
* **Connectors:** Specific connector types (e.g., CONM50-D37, CONSCSI3-6) are documented in manuals

### Physical Specifications

* **Form Factor:** PCI short card
* **Dimensions:** 6.8 in. x 4.2 in.
* **Operating Temperature Range:** 0 to +70°C (Commercial). Ruggedized configurations with extended operating temperatures are optional.

### Software and API

* **Software API:**
* High-level API for Microsoft Windows (XP, Vista, Server 2008/7, NT/2000, 32/64-bit versions), Linux (kernels 2.4/2.6), and VxWorks (5.5/6.x)
* Sample programs provided for C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, and LabWindows/CVI
* Optional support for Solaris and LabVIEW VI
* **GUI Bus Analyzer:** Optional BusTools/ARINC Windows-based GUI Bus Analyzer available

### Compatibility

* Functionally compatible with the earlier CEI-520 model
* The CEI-520A is a Universal PCI card, supporting both 3.3V and 5V signaling environments, while the CEI-520 is 5V PCI only. Physical connector keying prevents incorrect installation.
