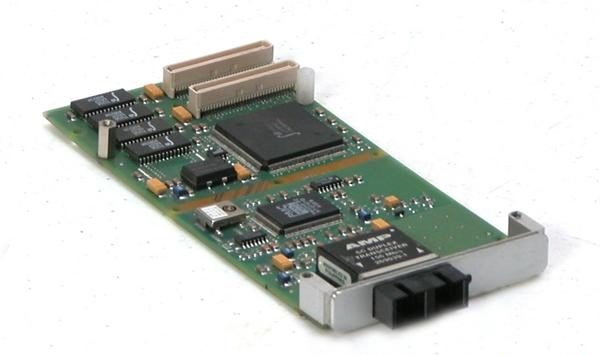

Abaco Systems / Radstone PMC-ATMF-2BA-100 155 Mbps ATM Network PMC Card

The Abaco Systems / Radstone PMC-ATMF-2BA-100 is a 155 Mbps ATM Network PMC Card designed for high-performance embedded systems. This card integrates ATM networking capabilities onto a PCI Mezzanine Card (PMC) form factor, offering a solution for applications requiring reliable ATM connectivity. It supports various ATM Adaptation Layers (AALs) and adheres to industry standards for ATM cell processing. The card is built on the NICStAR chip, providing a 33 MHz PCI 2.0 compliant bus interface with support for bus master DMA, scatter-gather DMA, and block transfers. This allows for efficient data handling and high throughput in demanding network environments.

### Technical Specifications

* **Product Name:** PMC-ATMF-2BA-100
* **Manufacturer:** Abaco Systems / Radstone
* **Product Type:** 155 Mbps ATM Network PMC Card
* **Data Rate:** 155 Mbps
* **Interface:** PCI 2.0 compliant, 32-bit, 33 MHz

### ATM and Networking Features

* **ATM Cell Processing:** Conforms to ANSI T1S1 5/92-002R3, ITU I.361, and ATM Forum UNI 3.0/3.1 specifications.
* **Supported AALs (ATM Adaptation Layers):** AAL0, AAL 3/4, and AAL 5 are supported in hardware.
* **Raw Cell Support:** Supports ‘Raw Cell’ formats.
* **NIC Architecture:** Based on the NICStAR chip.
* **Connection Support:** Supports up to 16,384 receive connections and over 20,000 transmit connections.
* **Physical Interface:** Multimode Fiber Optical Interface. OC-3 connectivity is handled by SC connectors for levels 1 and 2, and custom optical circuits for levels 3 and 4.

### Bus and Performance Features

* **Bus Interface:** 33 MHz PCI 2.0 compliant bus interface.
* **DMA Support:** Bus master scatter-gather DMA and block transfers up to 12 words.
* **Buffer RAM:** 128 KB of on-board buffer RAM.
* **Burst Mode:** Supports 32-bit burst mode.

### Physical and Environmental

* **Form Factor:** PCI Mezzanine Card (PMC).
* **Ruggedization Levels:** Available in various ruggedization levels, from standard (Level 1) for benign environments to Rugged Conduction Cooled (Level 4) for harsh conditions.

### Compatibility

* **PCI Compliance:** Compliant with PCI 2.0 specifications.
* **Form Factor Compliance:** Compliant with IEEE 1386.1 (PMC) standards.
