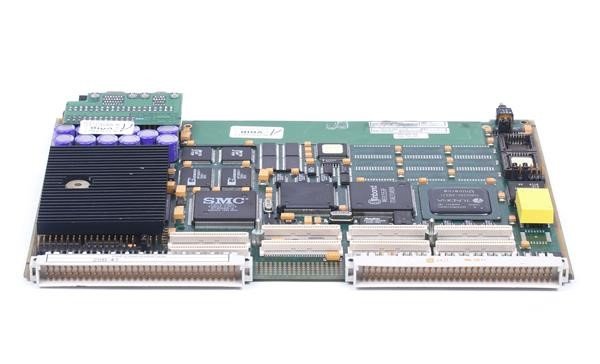

Abaco Systems / Radstone PPC1A-603e-1237E VME PowerPC Board

The Abaco Systems / Radstone PPC1A-603e-1237E is a VME PowerPC board designed for high-performance computing applications. This board leverages the PowerPC Reference Platform (PReP) architecture, offering backward compatibility with existing system designs while providing an upgrade path for enhanced performance. It supports processors operating at 266 MHz and higher frequencies, integrating sophisticated I/O subsystems and a high degree of on-board integration to address a wide range of application requirements.

### Technical Specifications

* **Processor:** PowerPC 603e
* **Clock Speed:** Not explicitly stated for the PPC1A-603e-1237E model, but related PPC1A series boards feature processors at 266 MHz and higher.
* **Cache:** 1 MB L2 Cache
* **Memory:** 16 to 336 MB EDO DRAM
* **Flash Memory:** 9 MB FLASH
* **VMEbus Interface:** VME64, compliant with ANSI/VITA 1-1994 and VME64 extensions. Utilizes the Tundra Universe II chip for PCI to VME bridge capability.

### Electrical Specifications

* **Core Supply Voltage (PowerPC 603e):** 3.3V ± 165mV
* **PLL Supply Voltage (PowerPC 603e):** 3.3V ± 165mV
* **I/O Supply Voltage (PowerPC 603e):** 3.3V ± 165mV
* **Input Voltage (PowerPC 603e):** -0.3V to 5.5V
* **Die-junction Temperature (PowerPC 603e):** 0 to 105 °C

### Interfaces

* **Ethernet:** 10BaseT or 10Base5 Ethernet
* **Expansion Slots:** (2) PMC Expansion Slots
* **Serial Ports:** Two RS232 serial I/O channels up to 115.2 kbaud.
* **Other Interfaces:**
* Ultra-SCSI peripheral interface controller
* Direct connection for keyboard and mouse
* Floppy disk controller
* Parallel/printer port

### Physical Specifications

* **Form Factor:** Single slot 6U VME
* **Build Levels:** Available in 2 air-cooled build levels. The Radstone PowerX series, which includes the PPC1A, offers five build level options, including three air-cooled and two conduction-cooled.

### Compatibility

* **Architecture:** PowerPC Reference Platform (PReP) compliant. This ensures compatibility with PReP-compliant software.
* **Software Support:** Radstone COTS software support includes BIT, Boot firmware, BSPs, and ESPs (with BCS) for LynxOS and VxWorks/Tornado.
