Abaco Systems / Ramix CP610/1-3U CompactPCI with 10/100BaseTX Ethernet

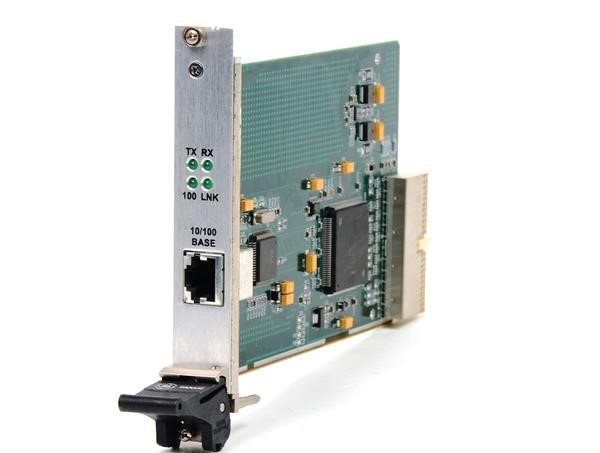

The Abaco Systems / Ramix CP610/1-3U is a 3U CompactPCI single board computer featuring 10/100BaseTX Ethernet connectivity. This board delivers high-performance networking through multiple 10/100BaseTX ports operating in full-duplex mode at both 10 Mbps and 100 Mbps. The integrated Ethernet/PCI chipset incorporates a powerful DMA engine and deep FIFO buffers to maintain continuous full-bandwidth operation while minimizing PCI bus impact. A PCI-to-PCI bridge optimizes performance and reduces PCI loading in multi-board configurations. The board supports full auto-negotiation to automatically configure to the highest possible operating mode, ensuring efficient integration into standard CompactPCI systems. RJ45 connectors provide copper-based Ethernet connectivity. The board interfaces with 64-bit/66 MHz PCI bus architecture and supports configurations with single, dual, or quad port availability depending on model variant.

– Technical Specifications

• Form Factor: 3U CompactPCI
• Ethernet Interface: 10/100BaseTX
• Ethernet Operation: Full-duplex at 10 Mbps and 100 Mbps
• Connectors: RJ45
• Media: Copper
• PCI Bus: 64-bit/66 MHz with PCI-to-PCI bridge
• Ethernet/PCI Chipset: DMA engine with deep FIFO buffers

– Key Features

• Auto-negotiation facility for automatic speed and duplex configuration
• PCI-to-PCI bridge topology reduces bus loading in multi-port and multi-board systems
• Deep FIFO buffering supports sustained full-bandwidth operation
• DMA-capable Ethernet/PCI controller minimizes host processor overhead

– Compatibility & Integration

The CP610/1-3U integrates directly with standard CompactPCI backplanes and 64-bit/66 MHz PCI host systems. Related RM610 PCI Ethernet NIC boards can be directly cabled for dedicated 800 Mbit full-duplex inter-board communication paths, enabling point-to-point high-speed data transfers in compatible architectures.
