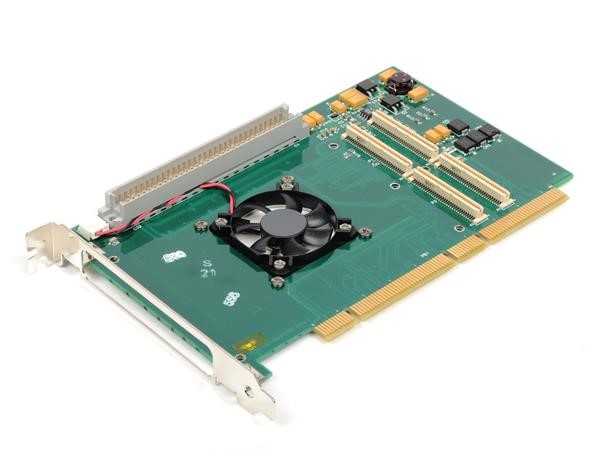

Abaco Systems / Ramix PMC239/F PCI to PMC Adapter with Fan Option

The Abaco Systems / Ramix PMC239/F is a PCI to PMC adapter designed to enable the integration of PMC (PCI Mezzanine Card) modules into systems with a PCI bus. This adapter facilitates the use of PMC modules, expanding the capabilities of existing PCI-based hardware.

### Technical Specifications

* **PCI Bus Compatibility:** Supports both 32-bit and 64-bit PCI slots.
* **Signaling Support:** Compatible with both 3.3V and 5V signaling PMC cards.
* **PCI Slot Compatibility:** Can be plugged into both 3.3V and 5V signaling PCI slots.
* **Note:** If a 3.3V-only signaling PMC card is installed on the PMC239/F, the adapter cannot be installed in a 5V-only PCI slot. The converse is also true for 5V-only PMC cards in 3.3V-only PCI slots.
* **Power Generation:** Generates the +3.3V power supply required for the PMC module.
* **Form Factor:** PCI edge connector style card conforming to IEEE 1386 standard.
* **Cooling:** Includes a 5V, 1W MagLev type fan for cooling the PMC card. The fan can be disconnected if not needed.
* **Debugging Connector:** Provides an extra connector suitable for debugging purposes on the PMC card. This connector maps 64 bits of user I/Os to the PMC connector (P4).

### Interfaces

* **Host Interface:** PCI edge connector.
* **Mezzanine Interface:** Designed to accommodate PMC modules (IEEE 1386 standard).

### Physical Characteristics

* **Fan Type:** MagLev (Magnetic Levitation).

### Compatibility

* **PMC Signaling:** Supports both 3.3V and 5V signaling PMC modules.
* **PCI Signaling:** Compatible with both 3.3V and 5V signaling PCI slots.

### Power Specifications

* **Fan Power:** 5V, 1W.
* **PMC Power Generation:** The adapter generates +3.3V for the PMC module.

### Application Notes

* The Abaco Systems / Ramix PMC239/F is ideal for laboratory development purposes, enabling engineers to test and integrate PMC modules within a PCI environment.
