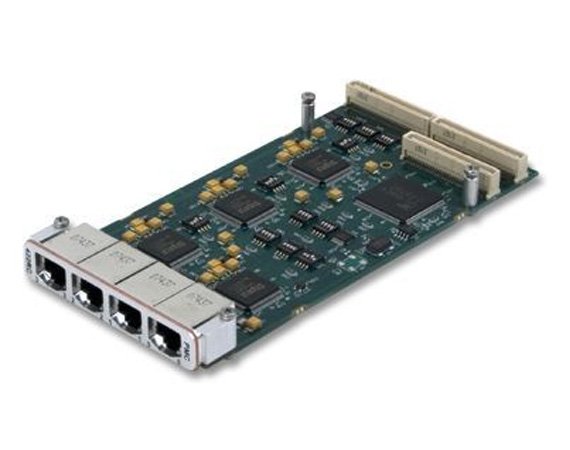

Abaco Systems / Ramix PMC422FP Eight Port Serial Controller

The Abaco Systems / Ramix PMC422FP is an eight-port serial controller designed for embedded systems, offering multiple serial communication channels on a single PCI Mezzanine Card (PMC). This card facilitates the integration of serial I/O into Single Board Computer (SBC), VMEbus, or CompactPCI systems, optimizing the use of available PMC slots. The PMC422FP supports various serial signaling types including RS-232, RS-422, and RS-485 (in full or half duplex modes), with configurable line drivers set via on-board DIP switches.

### Technical Specifications

* **Manufacturer:** Abaco Systems / Ramix
* **Model:** PMC422FP
* **Form Factor:** PMC (PCI Mezzanine Card)
* **Number of Serial Channels:** 8 (Eight)
* **UART Type:** Octal UART, 16C550 compatible register set
* **FIFO Buffer:** 64 Bytes per channel (RX/TX)
* **PCI Interface:** Compliant with PCI bus 2.2, supporting 33MHz clock and 32-bit data transfers
* **Data Transfer Modes:** Read/write burst operation; data transfer in byte, word, and double-word
* **Programmable Baud Rate:** 100 Bits/sec to 921.6 Kbits/sec (or 150 bits/s to 6.2 Mb/s depending on crystal used)
* **Supported Signaling Types:** RS-232, RS-422, RS-485 (full duplex and half duplex with termination or non-termination option)
* **I/O Routing Options:**
* Four ports routed to the front via RJ-45 connectors.
* Eight ports routed to the front via a 68-pin SCSI cable.
* All ports accessible on the rear I/O J4 with a PMC I/O Module (PIM) PIM422.
* **General Purpose Inputs:** 8-bit switch input for application-specific use; 16-bit general purpose timer/counter with eight general inputs is provided.

### Interfaces

* **Serial Ports:** 8 x RS-232/RS-422/RS-485
* **Front Panel Connectors:** Options include RJ-45 or a 68-pin SCSI connector.
* **Rear Panel Connectors:** Accessible via J4 with a PIM422 module.

### Physical Characteristics

* **Form Factor:** Standard PMC module designed to plug into a host processor board.

### Compatibility

* **Host Systems:** Compatible with VMEbus and CompactPCI systems, as well as any special purpose processor with a PMC connector.
* **PCI Compliance:** Full PCI compatibility (32MHz/32bit)
