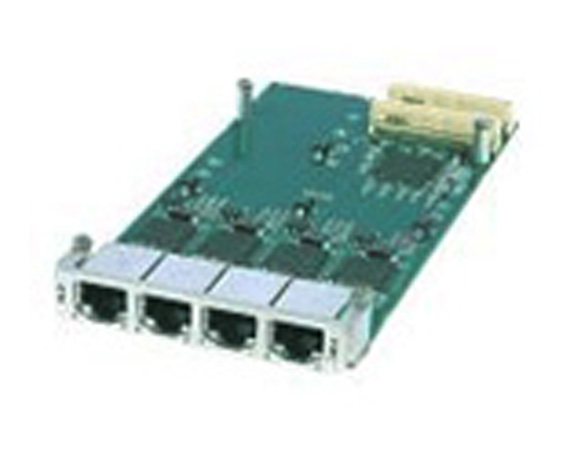

Abaco Systems / Ramix PMC610 Quad 10/100BaseTX Ethernet NIC PMC, Front I/O Module

The Abaco Systems / Ramix PMC610 is a PCI Mezzanine Card (PMC) offering quad 10/100BaseTX Ethernet connectivity. Designed for embedded systems, it provides four independent 10/100Mbit Ethernet ports with front panel RJ45 connectors for direct network cabling. This NIC is engineered for high-performance networking with minimal PCI overhead, featuring powerful DMA engines and deep FIFO buffers. The integration of a PCI-to-PCI bridge ensures efficient communication with the host PCI bus, which can operate at 66 MHz. The PMC610 supports full-duplex operation in both 10 and 100 Mbit modes and includes auto-negotiation capabilities for automatic configuration to the highest operating mode. Its design facilitates deterministic real-time performance, making it suitable for demanding interconnect applications. Software drivers are available for various operating systems, including VxWorks, Linux, LynxOS, and Windows NT.

### Technical Specifications

**General**
* **Manufacturer:** Abaco Systems / Ramix
* **Model:** PMC610
* **Form Factor:** PMC (PCI Mezzanine Card)
* **Ethernet Ports:** Four 10/100BaseTX ports
* **Port Routing:** Front I/O
* **Connectors:** RJ45

**Performance and Interfaces**
* **Data Rates:** 10/100 Mbit/s per port
* **Duplex Modes:** Full-duplex support for both 10 and 100 Mbit modes
* **Auto-Negotiation:** IEEE 802.3u compliant, automatically configures speed and duplex settings
* **PCI Interface:** PCI 66 MHz capable
* **PCI Bridge:** PCI-to-PCI bridge for high performance and minimum PCI loading
* **DMA Engine:** Powerful DMA engine with deep FIFO buffers for continuous, full bandwidth operation with minimum PCI overhead
* **Checksum Offloading:** Supports TCP/UDP checksum offloading
* **IP Security:** Fully supports IP Security (IpSec)

**Direct Cabling and Interconnects**
* **Direct Cabling:** Two PMC610 NICs can be directly cabled using a “cross-over” for a full-duplex 800Mbit dedicated data path.
* **Switched Networks:** Supports point-to-point and switched hub configurations for deterministic operation.

**Environmental and Physical**
* **Operating Temperature:** Standard: 0 to +55 °C. Wide operating temperature range versions available (e.g., -20 to +70 °C).
* **Humidity:** Operating: 5% to 95% non-condensing.
* **Conformal Coating:** Acrylic or polyurethane conformal coating available.
* **MTBF:** 281,000 hours.

**Power Requirements**
* **Voltage:** 3.3V, and 5V signaling support via PMC expansion site connector.
* **Typical Power Consumption:** 3 Watts.
* **Current Draw:** 0.9 Amp.

**Chipset**
* **Ethernet MAC:** Intel 82551ER

**Software Support**
* **Operating Systems:** Drivers available for VxWorks, Linux, LynxOS, Windows NT, and Solaris.

**Optional Features**
* **RoHS Compliant:** PMC610RC is the RoHS compliant version.
* **Wide Operating Temperature Range:** Available as an option.
* **Dual Ports:** Available as an option (refer to specific model numbers like PMC610RC-2).
