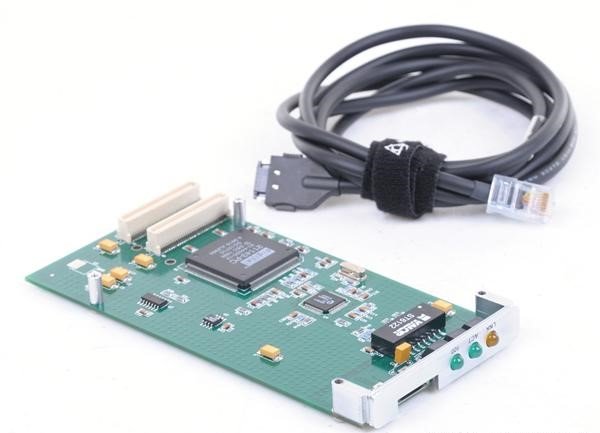

Abaco Systems / Ramix PMC661 Ethernet Interface Card

The Abaco Systems / Ramix PMC661 is a PCI Mezzanine Card (PMC) designed to provide 100/10Mbit Ethernet connectivity for embedded systems. This interface card supports 100Base-TX and is capable of full-duplex operation at both 100 Mbit and 10 Mbit modes. The PMC661 features an Ethernet/PCI engine with a powerful DMA engine and deep FIFO buffers, ensuring continuous, full-bandwidth operation with minimal PCI overhead. It also incorporates an auto-negotiation facility for automatic configuration to the highest possible operating mode, including bandwidth and full-duplex settings. This makes the PMC661 suitable for high-performance interconnects requiring real-time determinism, especially when two PMC661 boards are directly cabled using a crossover connection to create a dedicated full-duplex 100Mbit data path.

### Technical Specifications

**Networking Interfaces**

* **Type:** Ethernet Interface Card
* **Form Factor:** PCI Mezzanine Card (PMC)
* **Data Rate:** 10/100Mbit Ethernet connectivity
* 100Base-TX support
* 10Base-T support
* **Duplex Operation:** Full duplex capable in both 100 Mbit and 10 Mbit modes
* **Auto-Negotiation:** Full auto-negotiation facility for automatic configuration to the highest operating mode (bandwidth and full duplex)

**Performance Features**

* **DMA Engine:** Powerful DMA engine integrated for efficient data transfer
* **FIFO Buffers:** Very deep FIFO buffers to ensure continuous data flow
* **PCI Overhead:** Minimized PCI overhead for optimal system performance

**Connectivity**

* **Direct Cabling:** Supports direct cabling with a simple “crossover” for point-to-point connections
* **Hub/Switch Compatibility:** Can be used with hubs or switches for more complex interconnects

**Software Support**

* **Driver Availability:** Software drivers are available for popular operating systems such as VxWorks, pSOS, LynxOS, and Digital UNIX
* **Driver Functionality:** Drivers are designed to fit within the host operating system’s LAN protocol stack, allowing utilization of all host OS facilities. User control over auto-negotiation capability is also provided
* **Software License:** Software license for one OS is typically included with each PMC660/PMC661

**Physical and Environmental**

* **Card Edge System:** Compatible with card edge PCI systems using appropriate adapters (e.g., GE Fanuc embedded systems)
* **I/O Connector:** Single Micro Connector (for PMC661) or a high-density card edge connector with RJ45 transition cable (for PMC663)

**Compatibility**

* **PCI Standard:** Compliant with PCI Rev. 2.1 and IEEE 1386 (PMC)
