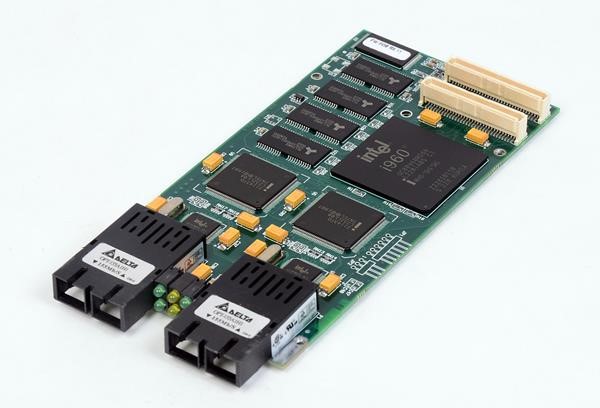

Abaco Systems / Ramix PMC665 Intelligent Dual 100BaseFX Ethernet Module

The Abaco Systems / Ramix PMC665 is an intelligent, dual-channel 100BaseFX Ethernet module designed for high-performance networking applications within embedded systems. This PCI Mezzanine Card (PMC) provides two independent 100 Mbit Ethernet connections utilizing multi-mode fiber optic media with SC-style connectors for physical interface. The PMC665 is engineered to integrate with host processor boards, such as Single Board Computers (SBCs), offering a compact and efficient Ethernet solution. A key feature is its on-module I/O co-processor, which offloads high-level tasks from the host processor, thereby enhancing overall system performance. The module complies with the CMC specification for PCI Mezzanine Cards.

### Technical Specifications

* **Product Name:** PMC665 Intelligent Dual 100BaseFX Ethernet Module
* **Manufacturer:** Abaco Systems / Ramix
* **Form Factor:** PCI Mezzanine Card (PMC)
* **Ethernet Type:** 100BaseFX
* **Number of Ports:** 2 (Dual)
* **Ethernet Media:** Multi-mode Fiber
* **Physical Connectors:** Dual SC-style connectors
* **Host Interface:** PMC connector for integration with SBCs
* **On-Module Processing:** Features an on-module I/O co-processor for offloading host tasks
* **Firmware Capabilities:** Supports Data Mover Firmware, Fail Over Firmware, and Trunking Capabilities
* **Protocols:** Embedded TCP/IP support
* **Compliance:** Compliant with CMC specification for PCI Mezzanine Cards

### Electrical Specifications

* Data not found.

### Interfaces

* **Ethernet:** Two independent 100BaseFX multi-mode fiber ports
* **Fiber Connectors:** Dual SC-style connectors
* **Host Bus Interface:** PMC connector, compliant with CMC specification

### Physical Specifications

* **Dimensions:** Standard PMC form factor. Specific dimensions are not detailed in the available documentation.
* **Connectors:** Front panel features two dual SC style connectors.

### Compatibility

* **Host Systems:** Designed to be plugged onto host processor boards, including Single Board Computers (SBCs).
* **Adapter Compatibility:** Card edge PCI systems can be accommodated using a Ramix PMC239 adapter for rapid prototype and development.

### Software and Firmware

* **Firmware Features:**
* Data Mover Firmware
* Fail Over Firmware
* Trunking Capabilities
* Embedded TCP/IP

—
