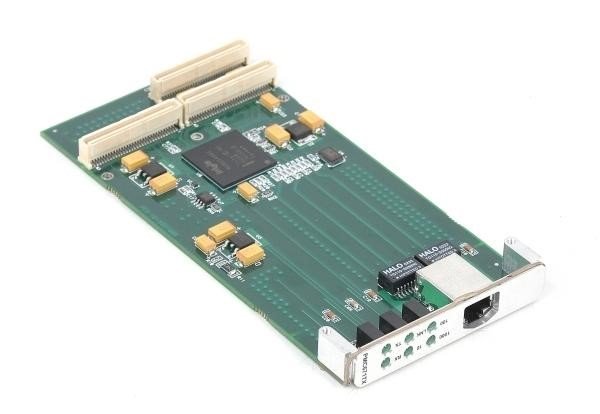

Abaco Systems / Ramix PMC671TX Gigabit Ethernet Interface Module

The Abaco Systems / Ramix PMC671TX is a single-port Gigabit Ethernet interface module designed for PMC (PCI Mezzanine Card) form factor systems. It offers auto-negotiation for 10/100/1000Mbit Ethernet speeds and supports full-duplex operation. The module features an automatic MDI/MDIX switch-over capability, allowing it to detect and correct for both cross-over and non-cross cables. It is equipped with a powerful DMA engine and deep FIFO buffers (64KB) to ensure continuous, full-bandwidth operation with minimal PCI overhead. This module is suitable for high-performance interconnects requiring real-time determinism, and can be directly cabled with another PMC671TX for a full-duplex 1000Mbit dedicated data path.

### Technical Specifications

* **Product Name:** Abaco Systems / Ramix PMC671TX Gigabit Ethernet Interface Module
* **Form Factor:** PMC (PCI Mezzanine Card)
* **Ethernet Speed:** 10/100/1000Base-T, auto-negotiation
* **Duplex Operation:** Full duplex
* **Interface:** Gigabit Ethernet / PCI
* **Cabling:** Supports MDI/MDIX automatic switch-over
* **DMA Engine:** Yes, with deep FIFO buffers
* **FIFO Buffer Size:** 64 KByte
* **PCI Interface:**
* PCI 64-bit/66MHz
* Supports 3.3 V and 5 V signaling (Note: Data for PMC676TX/RCTX indicates PCI-X, PCI 64/66 MHz)
* **Performance:** Full 1000Mbit Point-to-Point Performance
* **Jumbo Frame Support:** Capable
* **Host Off-loading Features:**
* Packet filtering based on checksum errors
* SNMP and RMON statistic counters
* Hardware TCP checksum off-loading
* **Address Filtering Modes:**
* Exact matches (unicast or multicast)
* 4096-bit hash filter for multicast frames
* Promiscuous unicast and promiscuous multicast transfer modes
* **Connectors:** Front I/O RJ45 Connector
* **Direct Cabling:** Two PMC671TX boards can be directly cabled for a full duplex 1000Mbit dedicated data path
* **Compatibility:** Card edge PCI systems can be accommodated using RAMiX’s PMC239 adapter for rapid prototype and development

### Physical Characteristics

* **Form Factor:** Single slot PMC

### Environmental Specifications

* **Operating Temperature:** 0 to +60 °C (Note: Data for PMC676RCTX indicates storage temp of -40 to +85 °C, but operating temp is consistent)
* **Operating Humidity:** 5% to 95% non-condensing

### Software and Operating System Support

* **Supported Operating Systems:** While specific OS support for the PMC671TX is not detailed in the provided snippets, related models (PMC676TX, PMC676RCTX) indicate support for Windows®, Linux®, VxWorks®, LynxOS®, and Solaris®. Drivers are designed to integrate with the host OS LAN protocol stack.
