Abaco Systems / Ramix PMC676TX Dual Port GigE Controller

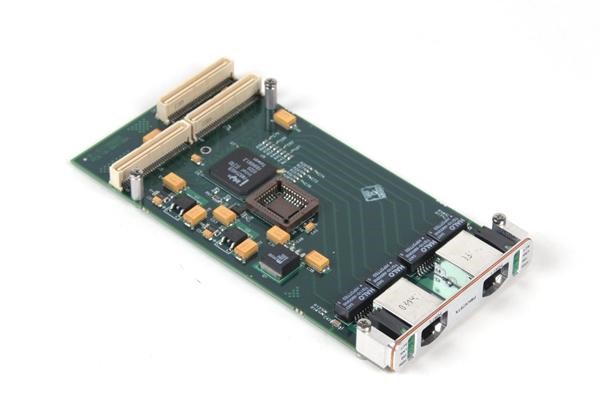

The Abaco Systems / Ramix PMC676TX is a dual-port Gigabit Ethernet controller on a PMC (PCI Mezzanine Card) form factor, designed for high-performance embedded systems. It provides two independent 10/100/1000Base-TX Ethernet ports with RJ-45 connectors. The card features a robust DMA engine for each port, coupled with deep FIFO buffers (64 Kbytes), ensuring continuous, full-bandwidth operation with minimal PCI overhead. This design makes the PMC676TX suitable for demanding applications requiring real-time determinism. The card supports various address filtering modes, hardware TCP checksum offloading, and packet filtering based on checksum errors, further enhancing its efficiency and offloading tasks from the host system. It is compatible with PCI-X and PCI 64/66 MHz interfaces and supports signaling for both 3.3 V and 5 V. Software drivers are available for common operating systems, including Windows, Linux, VxWorks, LynxOS, and Solaris.

### Technical Specifications

**General**
* **Manufacturer:** Abaco Systems / Ramix
* **Model:** PMC676TX
* **Product Family:** PMC676, PMC676TX, PMC676RCTX
* **Form Factor:** Single Slot PMC

**Ethernet Interface**
* **Ports:** 2 x 10/100/1000Base-TX
* **Connector Type:** RJ-45
* **Port Routing:** Front Panel
* **Media:** Copper
* **Auto-Negotiation:** Supported for operating speed and duplex
* **MDI/MDIX:** Switch-over capability supported
* **Controller/MAC:** Intel 82546
* **Jumbo Frames:** Capable
* **Full Duplex Operation:** Supported on each channel

**PCI Bus Interface**
* **Specification:** PCI-X, PCI 64/66 MHz
* **Signaling:** 3 V and 5 V
* **Speed:** 33/66 MHz
* **Width:** 32/64-bit
* **DMA Engine:** Powerful DMA engine for each port
* **FIFO Buffers:** 64 Kbyte per port

**Host Off-loading Features**
* **Packet Filtering:** Based on checksum errors
* **Statistic Counters:** SNMP and RMON support
* **TCP Checksum Off-loading:** Hardware support
* **Address Filtering Modes:**
* 16 exact matches (unicast or multicast)
* 4096-bit hash filter for multicast frames
* Promiscuous unicast and promiscuous multicast transfer modes

**Electrical Specifications**
* **Power Consumption (Total):** 6 Watts
* **Current Draw (@ 3.3 V):** 0.9 Amps
* **Current Draw (@ 5 V):** 0.6 Amps

**Environmental Specifications**
* **Operating Temperature:** 0 to +60 °C
* **Storage Temperature:** -40 to +85 °C
* **Operating Humidity:** 5% to 95% non-condensing
* **Storage Humidity:** 5% to 95% non-condensing
* **Conformal Coating:** Acrylic or polyurethane option available

**Compatibility and Software Support**
* **Operating Systems:** Windows®, Linux®, VxWorks®, LynxOS®, Solaris®
* **Boot Options:** Solaris OBP boot option, PXE boot option available
* **System Integration:** Compatible with GE Fanuc Embedded Systems PMC239 adapter for card-edge PCI systems

**Reliability**
* **MTBF:** 245,000 hours (MIL 217-F Nav Shel 25 Deg. C)
