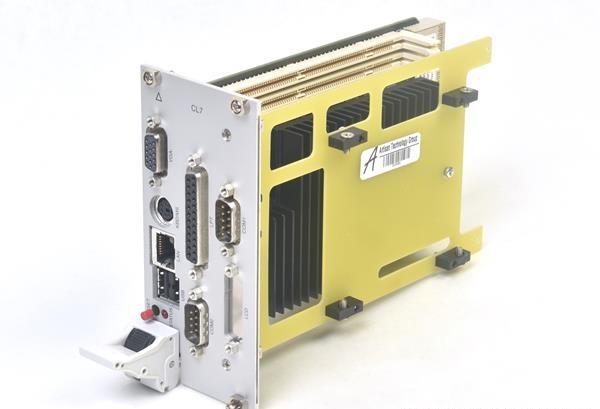

The Abaco Systems CL7R2Q0B00C14W18 is a 3U CompactPCI single board computer engineered for embedded systems in demanding industrial, military, aerospace, and telecommunications environments. This single-slot SBC delivers flexible processor options paired with multi-OS support, enabling rapid deployment across high-reliability applications from network switching to medical imaging systems.
– Technical Specifications
• Processor Options: Celeron 566 MHz or Pentium III 700–1000 MHz
• Memory: SDRAM up to 512 MB
• Form Factor: 3U CompactPCI, single-slot integration
• Operating Systems Supported: Windows 2000/XP, QNX, VxWorks, Linux
• I/O Interfaces: Multiple I/O options including serial, parallel, Ethernet, and USB connectivity
• Power Architecture: Low-power mobile CPU design for thermal efficiency
– Key Features
• Single-slot CompactPCI mechanical packaging minimizes backplane footprint
• Multi-processor support enables system scaling from entry-level to high-performance configurations
• Broad OS compatibility accelerates software integration and reduces development cycles
• Low-power mobile CPU implementation reduces heat dissipation requirements in confined spaces
– Typical Applications
• Industrial automation and process control
• Military and aerospace avionics systems
• Medical and scientific imaging platforms
• High-bandwidth network switching and intelligent telecommunication infrastructure
– Compatibility & Integration
The CL7R2Q0B00C14W18 integrates into standard 3U CompactPCI backplanes without custom mechanical or electrical adaptation. Software documentation and development resources for the SBS CL7 series are available to support system integration. The board’s multi-OS architecture eliminates vendor lock-in while maintaining backward compatibility with established embedded deployments.
