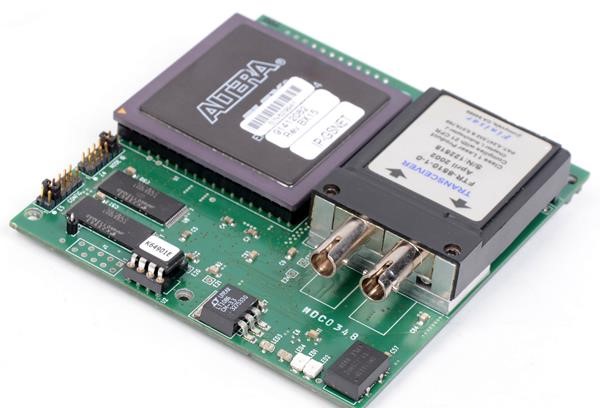

The Abaco Systems IP-GSNET is an IndustryPack (IP) mezzanine module designed for integration into carrier boards supporting VME, Compact PCI, PCI, and PCI Express architectures. This ANSI/VITA 4 compliant module features one transmitter and one receiver, connected via two 50-pin connectors. The module leverages keyed connectors for correct installation and relies on the host carrier board for power distribution and base address configuration via shunt selection. An onboard ID PROM stores manufacturer identification, model code, revision level, and optional calibration data to enable auto-configuration and system maintenance.
– Technical Specifications
• Manufacturer: Abaco Systems / SBS / Greenspring
• Model: IP-GSNET
• Module Type: IndustryPack mezzanine module
• Standard Compliance: ANSI/VITA 4
• Connectors: Two 50-pin connectors
• Transceiver Configuration: One transmitter, one receiver
• ID PROM: Onboard identification and configuration memory
– Key Features
• Keyed connector design ensures correct polarity and seating on compatible carrier boards
• Configurable base I/O address via carrier board shunt settings (4096-byte boundary alignment recommended)
• Modular form factor allows rapid integration into existing IndustryPack-compliant systems
• M2 × 18 stainless steel fastener compatibility for secure mounting in high-vibration environments
– Compatibility & Integration
The IP-GSNET integrates with any IndustryPack specification compliant carrier board, enabling deployment across multiple system architectures. Supported host platforms include VMEbus, 3U and 6U Compact PCI, standard PCI, and PCI Express. Configuration and driver support are managed through the module’s ID PROM, which communicates system requirements to the carrier board and host system.
