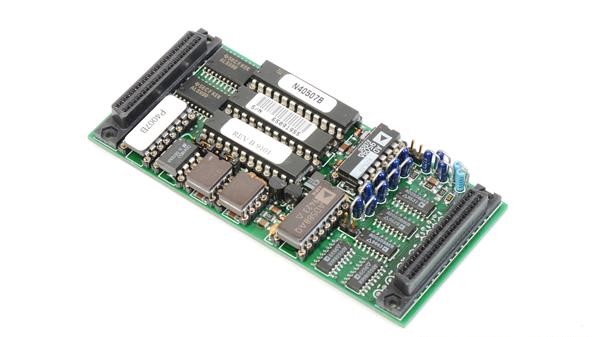

The Abaco Systems IP-Precision-ADC is a 12-bit analog input module engineered for precision data acquisition in industrial applications. This single-wide IndustryPack module delivers high-accuracy analog signal monitoring and conversion through flexible input architecture, programmable gain control, and fast conversion throughput. It integrates with compatible IndustryPack carrier boards to enable detailed signal capture and real-time processing in demanding measurement environments.
– Technical Specifications
• Analog Input Channels: 20 single-ended input lines; 8 differential input lines; dynamic mixing of input types supported
• Resolution: 12-bit analog-to-digital converter
• Programmable Gain Amplifier: Software-controlled PGA with gain range from 1 to 500
• Sampling Architecture: Track and hold circuit for accurate signal acquisition
• Conversion Time: Less than 14 microseconds per conversion
• Throughput Rate: Greater than 60,000 conversions per second
• Analog Output: Two 12-bit DAC lines for precision voltage output
• Form Factor: Single-wide IndustryPack module
– Key Features
• Instant Conversion Mode allows conversion initiation and completion within a single I/O read cycle without software driver intervention
• Dynamic input configuration enables mixed single-ended and differential topologies within a single application
• High-speed conversion throughput supports real-time, continuous sampling applications
• Wide programmable gain range (1× to 500×) accommodates small-signal and standard-level input sources
• Dual 12-bit DAC outputs provide synchronized analog reference or control signals
– Typical Applications
• Industrial sensor signal conditioning and monitoring
• Multi-channel data acquisition systems
• Process control feedback loops requiring analog I/O integration
• Test and measurement systems with mixed input requirements
– Compatibility & Integration
The IP-Precision-ADC interfaces through the IndustryPack (IP) standard and requires a compatible IndustryPack carrier board for operation. Typical IndustryPack modules measure 1.8 inches × 3.9 inches. Carrier board power requirements typically include +5V DC and ±15V DC supplies.
