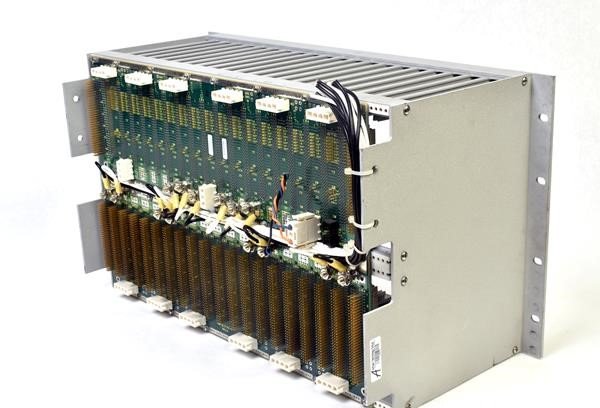

The Abaco Systems / VMIC VMIVME-200-160 is a 21-slot VMEbus mainframe with a 20-slot backplane engineered for modular system integration in industrial, commercial, and military applications. Built from extruded aluminum with integral one-piece card guides, the chassis delivers structural rigidity while punched openings between guides enable efficient thermal management. The non-conducting epoxy powder coat finish provides durability and environmental protection.
– Technical Specifications
• Chassis Type: 21-slot mainframe
• Backplane Slots: 20 available slots
• Chassis Depth: 160 mm standard
• Construction Material: Extruded aluminum
• Card Guides: Integral one-piece extruded aluminum design
• Finish: Durable, non-conducting epoxy powder coat
• Power Supply Options: ±12V outputs (various VMIC power supplies compatible)
– Key Features
• Extruded aluminum construction ensures rigid, flexure-resistant chassis assembly
• Punched openings between card guides optimize uninterrupted airflow and cooling efficiency
• One-piece card guides prevent flexing and module breakage during operation
• Configurable with multiple VMIC backplane and power supply combinations
• Field-proven VMEbus standard architecture
– Typical Applications
The VMIVME-200-160 serves as the foundational platform for distributed I/O, data acquisition, real-time control, and signal processing systems where modular architecture and thermal management are critical. Commonly deployed in legacy industrial automation, defense electronics, avionics, and telecommunications infrastructure.
– Compatibility & Integration
The mainframe integrates with VMIC VMEbus modules, selectable backplane configurations (VMIVME-M20, VMIVME-M10), and power supplies including VMIVME-00PS750-112, VMIVME-PS400-112, and VMIVME-PS500-115. System configuration depends on backplane selection and VMEbus module compliance.
