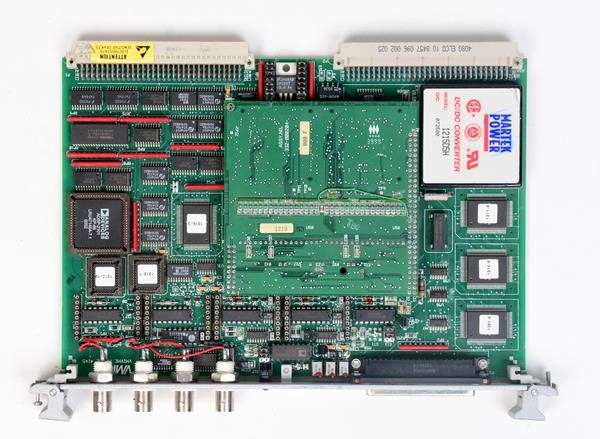

The Abaco Systems / VMIC VMIVME-4145-000 is a VMEbus-based Arbitrary Waveform Generator delivering high-precision, user-defined signal generation for demanding industrial and scientific applications. This module integrates directly into VMEbus systems, enabling custom waveform creation through onboard waveform memory and VMEbus-compatible control protocols.
– Technical Specifications
-# Waveform Generation
• Arbitrary waveform generation with user-defined signal capability
• Onboard waveform memory for waveform storage
-# Output Characteristics
• Arbitrary waveform output support
-# Control & Interface
• VMEbus interface and control protocol compatibility
– Key Features
• Direct VMEbus integration eliminates external control hardware requirements
• User-programmable waveform memory supports custom signal design
• VMEbus protocol control enables seamless integration into existing test architectures
• Industrial and scientific application focus
– Typical Applications
• Custom signal generation in automated test equipment (ATE)
• Industrial process control and monitoring
• Scientific research requiring arbitrary waveform synthesis
• Specialized signal conditioning in instrumentation systems
– Compatibility & Integration
The module operates as a VMEbus peripheral, requiring standard VMEbus backplane integration. Programming and operational control leverage established VMEbus protocols, making it compatible with existing VMEbus-based test and measurement systems. The form factor adheres to VMEbus module standards for drop-in installation.
