Abaco Systems / VMIC VMIVME-5565-110 Reflective Memory Node Card

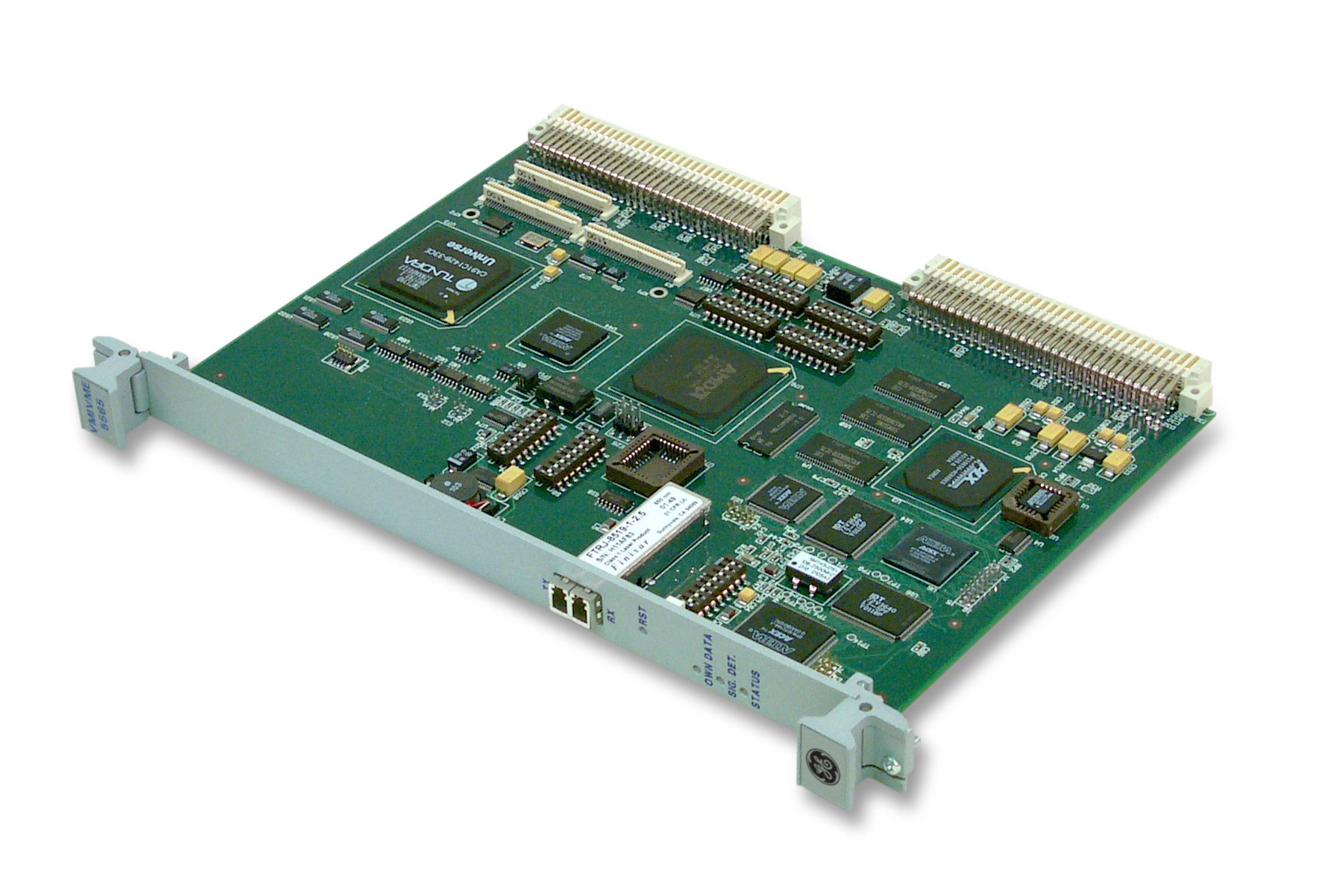

The Abaco Systems / VMIC VMIVME-5565-110 is a Reflective Memory Node Card for VMEbus 6U Eurocard systems, enabling deterministic, low-latency data sharing across up to 256 independent nodes. Operating over an optical ring topology at 2.12 Gbaud serial speeds, the card delivers sustained network throughput up to 170 Mbyte/s with inter-node latency of 450–500 nanoseconds. Data transfer is software transparent, requiring no host processor intervention.

– Technical Specifications

• Network Architecture: Reflective Memory (RFM) on optical ring topology; supports up to 256 nodes
• Serial Speed: 2.12 Gbaud
• Network Data Rate: 43 Mbyte/s (4-byte packets) to 170 Mbyte/s (64-byte packets)
• VME Transfer Rate: 40 Mbyte/s or 132 Mbyte/s (33 MHz/32-bit), 264 Mbyte/s (33 MHz/64-bit)
• Onboard Memory: 64 Mbyte or 128 Mbyte SDRAM, configurable
• Inter-Node Latency: 450–500 nanoseconds typical
• Power Supply: +3.3 VDC (±5%), 0.7 A typical, 1.5 A maximum
• Operating Temperature: 0°C to +65°C with forced air cooling at 300 LFM
• MTBF: 1,307,078 hours (Bellcore)

– Key Features

• Fiber optic connectivity: multimode to 300 m, single-mode to 10 km
• Dynamic packet sizing: 4 to 64 bytes
• Interrupt transfer support for any node
• Integrated error detection and management
• RoHS compliant
• Star configuration option via ACC-5595 or HUB-5595 managed hub

– Compatibility & Integration

The card integrates with VMEbus 6U Eurocard infrastructure independent of host bus structure. Operating system support includes Linux, VxWorks, and Windows. PCI configuration registers: Vendor ID $114A, Device ID $5565.
