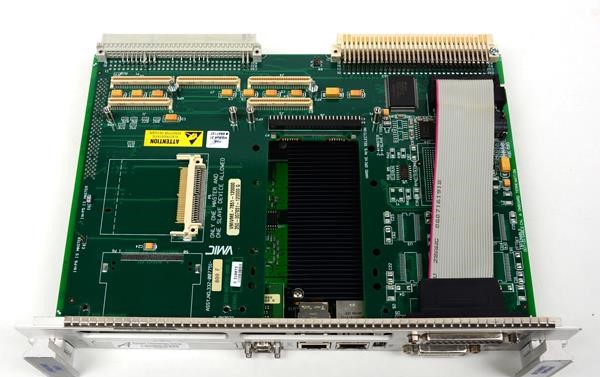

Abaco Systems / VMIC VMIVME-7851-120000 Single Board Computer

The Abaco Systems VMIVME-7851-120000 is a VME 6U single board computer engineered for real-time data acquisition, processing, and control in harsh industrial and aerospace environments. Built on the Intel Pentium 4 Processor – M architecture, this dual-slot VME module delivers deterministic performance across demanding embedded applications.

– Technical Specifications

Processor & Memory
• Intel Pentium 4 Processor – M at up to 2.20 GHz with 512 Kbyte L2 Advanced Transfer Cache
• Intel NetBurst™ micro-architecture; 478-pin Micro-FCPGA package
• PC1600 DDR SDRAM up to 1 GB via single SODIMM
• 400 MHz system bus with quad-pumped architecture delivering 3.2 Gbyte/s data transfer
• Intel 852GM / 852GME chipset

Storage & Expansion
• Bootable CompactFlash up to 1 Gbyte on secondary IDE (128 Mbyte, 256 Mbyte, 512 Mbyte, or 1 Gbyte options)
• Optional internal bootable CompactFlash up to 1 Gbyte
• Support for 1.8″ and 2.5″ IDE hard drives
• Optional dual-channel Ultra160 SCSI controller
• Three PMC expansion sites (site #3 may be unavailable with certain front panel configurations)

Graphics & Display
• Intel Extreme Graphics 2 Technology with internal SVGA and DVI controller
• 4 Mbyte DRAM display cache

Networking & I/O
• Dual Ethernet controllers: 10BaseT/100BaseTX and 10BaseT/100BaseTX/1000BaseT (Gigabit)
• Two 16550-compatible serial ports
• USB 2.0 Rev. front panel connection
• Enhanced parallel port (DB25)
• I²C bus support

Embedded Features
• Software-programmable watchdog timer with NMI or VMEbus SYSFAIL options
• Four general-purpose programmable timers (two 16-bit, two 32-bit)
• 32 Kbyte non-volatile SRAM
• Real-time clock/calendar
• Front panel reset switch and miniature speaker
• Keyboard/mouse port

– Key Features

• Full IA-32 software compatibility ensures broad application portability
• Modular PMC expansion architecture supports specialized I/O and processing cards
• Multiple storage options provide boot flexibility and mission data capacity
• Dual Ethernet with Gigabit capability enables high-bandwidth network integration

– Typical Applications

Aerospace and defense systems requiring real-time embedded processing, industrial control platforms with harsh environment tolerance, and data acquisition systems demanding deterministic timing and reliability.

– Compatibility & Integration

Compliant with VME Specification Rev. C.1. Supported operating systems include Windows 2000, Windows XP, VxWorks, QNX, LynxOS, and Linux-based distributions.
