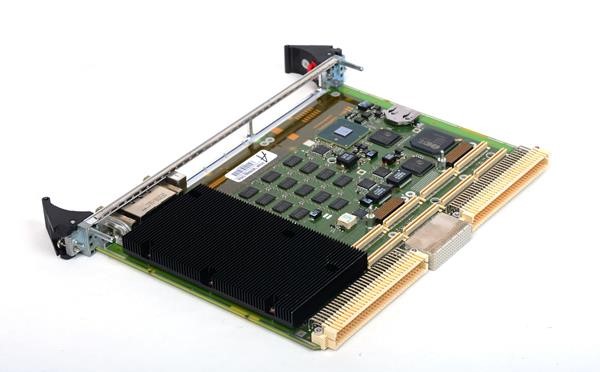

Abaco Systems VR12A2F2M30A Single Board Computer

The Abaco Systems VR12A2F2M30A is a high-performance, single-board computer (SBC) designed for demanding applications within aerospace, defense, and industrial sectors. It features an Intel Core i7 processor, offering dual-core processing capabilities up to 2.53 GHz, integrated graphics, and a memory controller. This SBC is built on the 6U VME form factor and is engineered to meet stringent environmental requirements, with options for extended temperature ranges and various cooling methods, including air and conduction cooling. The VR12A2F2M30A provides a flexible and configurable platform with dual mezzanine expansion sites supporting PMC and XMC modules, enhancing its I/O, communication, and processing capabilities for rugged computing environments.

### Technical Specifications

* **Processor:** Intel Core i7 (up to 2.53 GHz)
* Features integrated graphics and memory controller.
* Intel Intelligent Power Technology for optimal frequency and power.
* **Memory:**
* Up to 8 GB soldered DDR3 SDRAM with ECC.
* Up to 16 GB NAND Flash (soldered).
* Optional onboard SATA HDD.
* Optional BIOS backup Flash.
* **Expansion Sites:**
* Two on-board expansion sites:
* Two PCI-X PMC/x8 PCIe XMC.
* Supports a broad range of options for I/O, communications, and other capabilities.
* **Storage:**
* Up to 16 GB NAND Flash (soldered).
* Optional onboard SATA HDD.
* **Bus Interface Chip:** Tundra Tsi148.
* **Form Factor:** 6U VME.

### Electrical Specifications

* **Power Requirements:** Specific details are not extensively documented in publicly available datasheets but are configurable based on selected options and ruggedization levels.

### Interfaces

* **Front Panel I/O:**
* 2 x Gigabit Ethernet.
* 1 x USB.
* 1 x VGA.
* 1 x COM port.
* **Rear Panel I/O:**
* 2 x Gigabit Ethernet ports (VITA 31.1 compliant).
* 1 x VGA (2 ports possible if front I/O not utilized).
* 2 x DVI.
* 2 x SATA ports.
* 2 x COM ports.
* 2 x USB ports.
* 12 x GPIO.
* 2 x PMC IO signals.
* IPMI 2.0, PICMG 2.9.
* **On-board Connectors:**
* Gigabit Ethernet (routed to rear, VITA 31.1 compliant).
* USB Ports.
* IPMI.
* EEPROM (User and Factory).
* BIOS.
* Super IO.
* PCIe to PCI-x bridges.
* Hard Drive Option.
* NAND Flash.
* SATA to PATA.
* XMC/PMC Site.
* VME MUX.
* LPC, SPI, SMbus, FDI, DMI.
* PMCIO.
* Backup BIOS (Optional).

### Physical Specifications

* **Form Factor:** 6U VME.
* **Cooling:**
* Available in air-cooled and conduction-cooled build levels.
* Options for conduction cooling.
* **Ruggedization Levels:** Level 1-5 (Air and Conduction Cooled).
* **Environmental Operating Temperatures:**
* Level A: 0 / 55°C max.
* Level B: -20 / +65°C max.
* Level C: -40 / +71°C max.
* Level D: -40 / +75°C max (at cold wall for Conduction Cooled).
* Level E: -40 / +85°C (at cold wall for Conduction Cooled).
* **Vibration:**
* 0.002g²/Hz (Levels A, B).
* 0.04g²/Hz** (Level C).
* 0.1g²/Hz** (Levels D, E).
* **Note:** **With a flat response to 1000 Hz, 6 dB/Oct roll-off from 1000 to 2000 Hz.
* **Shock:**
* 20g*** (Levels A, B, C).
* 40g*** (Levels D, E).
* **Note:** ***Peak sawtooth 11 ms duration.
* **Conformal Coating:** Optional.
* **Altitude Operation:** Specified for altitudes from sea level to 1000 m (3300 ft.) for air-cooled versions at typical ambient temperatures. Assistance available for operation outside this range.

### Compatibility

* **Operating Systems:** Support for various operating systems, including Linux and VxWorks, is available through Abaco’s Board Support Packages (BSPs) and Software Development Kits (SDKs).
* Linux SDK for VR12 Software Reference Manual.
* VxWorks BSP for VR12/VP12 HTML Pages.
* Windows SDK for VR12 Software Reference Manual.
* **Mezzanine Standards:** Supports PMC and XMC mezzanine cards.
* **VITA Standards:** VITA 31.1 compliant Ethernet ports available.
* **Software Support:** AXISView, AXISFlow, AXISLib support.
