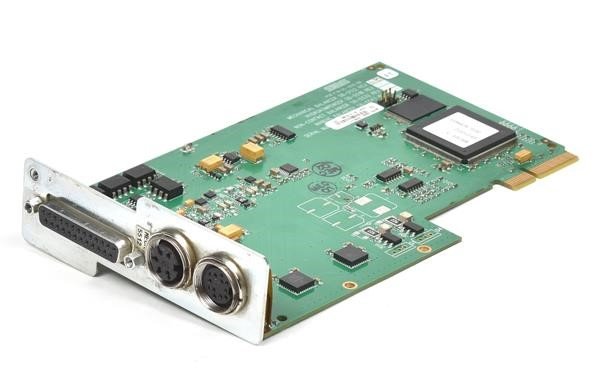

Accretech / SBS SB-5512 Mechanical Wired Balancer Control Board

The Accretech/SBS SB-5512 is a control card designed for precision mechanical balancing within the modular SB-5500 Automatic Balancer System Controller. This all-digital electronic control board achieves balancing accuracy to 0.02 microns across spindle speeds from 300 to 30,000 RPM, enabling reduced setup time and enhanced component longevity in grinding wheel, dressing wheel, and spindle bearing applications. The SB-5512 integrates into the SB-5500 controller’s four-slot architecture and communicates via Profibus DP, Ethernet TCP/IP, USB 2.0, and opto-isolated CNC/PLC hardwire outputs. A detachable TFT LCD color display (480 × 272 pixels) provides real-time monitoring, with optional virtual screen software enabling remote observation. Multilingual support includes English, Chinese, French, German, Italian, Polish, Russian, Spanish, and Swedish.

– Technical Specifications

• Balancing Accuracy: ±0.02 microns
• Spindle Speed Range: 300 to 30,000 RPM
• Design Architecture: All-digital electronic; modular card form factor fitting SB-5500 controller slots
• Display: Detachable TFT LCD color, 480 H × 272 V pixels (95 mm × 53.86 mm diagonal)
• Power Supply Options:
– DC: 21 VDC to 28 VDC, 5.5 A max at 21 VDC (reverse voltage protected)
– AC: 100–120 VAC, 50/60 Hz, 2 A max; or 200–240 VAC, 50/60 Hz, 1 A max
• Communication Interfaces: Profibus DP, Ethernet TCP/IP, USB 2.0, opto-isolated CNC/PLC hardwire outputs
• Operating Temperature: 5 °C to +55 °C
• Environmental Rating: IP54, NEMA 12 (selected configurations); Pollution Degree 2; Installation Category II
• Certifications: ETL, CE

– Key Features

• Mechanical wired balancing control for cable-connected balancers
• Multi-language interface (9 languages supported)
• Detachable display with optional remote monitoring via virtual screen software
• Backward compatible with existing SBS installations
• Modular expandability within SB-5500 four-slot controller

– Typical Applications

• Precision balancing of rotating machinery components
• High-speed spindle systems requiring micron-level accuracy
• Grinding and dressing wheel balance operations
• OEM machinery integration via hardwire CNC/PLC interface

– Compatibility & Integration

The SB-5512 control card operates exclusively within the Accretech/SBS SB-5500 Automatic Balancer System Controller. It supports mechanical balancers using cable connection and integrates with existing SBS installations. The shared hardware platform enables future upgrades from manual to automatic balance control through optional control card additions.
