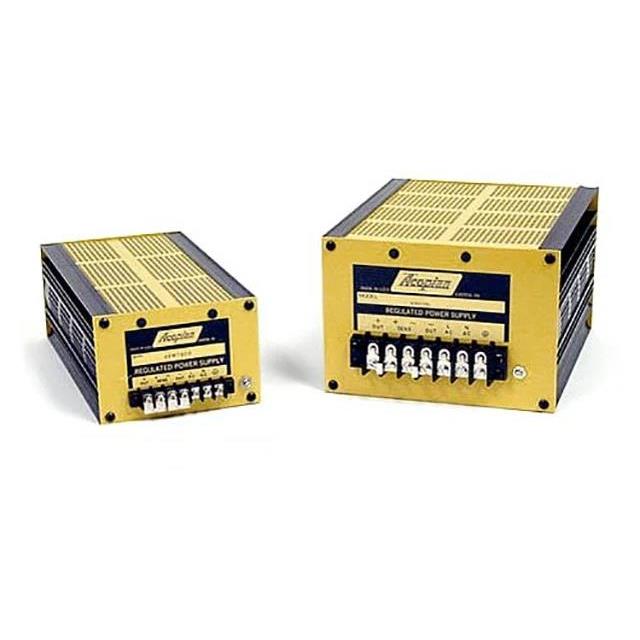

Acopian VA5H3200M Power Supply

The Acopian VA5H3200M is a linear regulated DC power supply delivering 5 VDC at 32 A, designed for applications requiring stable, regulated power output. This convection-cooled unit operates across 50–400 Hz input frequencies and supports dual input voltage configurations: 105–125 VAC standard, or 210–250 VAC with the -230 suffix option. Built with extruded aluminum construction, it provides floating outputs with remote voltage sensing as standard, ensuring accurate regulation at the load. Short circuit protection is integral. The supply mounts flexibly in 19″ RETMA racks, as a 17″ benchtop unit, or via threaded mounting holes on bottom and side surfaces. Optional DIN rail and wall-mount kits expand installation flexibility.

– Technical Specifications

• Output: 5 VDC @ 32 A
• Input Voltage: 105–125 VAC (210–250 VAC available)
• Input Frequency: 50–400 Hz
• Line Regulation: Typically 0.015%/°C
• Operating Temperature: −20°C to +71°C ambient
• Case Size: H16
• Cooling: Convection cooled (600 W dissipation)
• Construction: Extruded aluminum assemblies
• Protection: Built-in short circuit protection
• Certifications: TAA Compliant, ISO 9001, CE, cURus

– Key Features

• Floating outputs—positive or negative side can be grounded; supports series stacking
• Remote voltage sensing standard for load-point regulation
• Control voltage input for on/off switching (11–28 VDC @ 65 mA max)
• Optional overvoltage protection (prefix “V”)
• Optional under/overvoltage alarm contacts via suffix “L” (tolerance: ±1.0 V for 5 V models)
• Moisture/fungus proofing available (suffix “F”)
• Terminal strip cover option (suffix “M”)

– Typical Applications

Systems requiring stable 5 V regulated power with moderate to high current demand. Suitable for laboratory test equipment, industrial control systems, and embedded applications where input AC frequency varies or dual mains voltage support is required.

– Compatibility & Integration

Mounts in standard 19″ RETMA cabinets or as a benchtop unit. Accessory kits (GB8, GBR, LH35DIN, LV35DIN, LR35DIN) enable wall or DIN rail installation. Threaded mounting holes (8-32) on bottom and sides accommodate custom enclosure integration.
