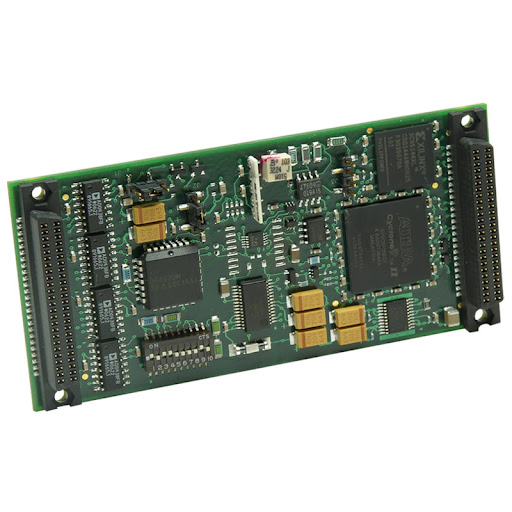

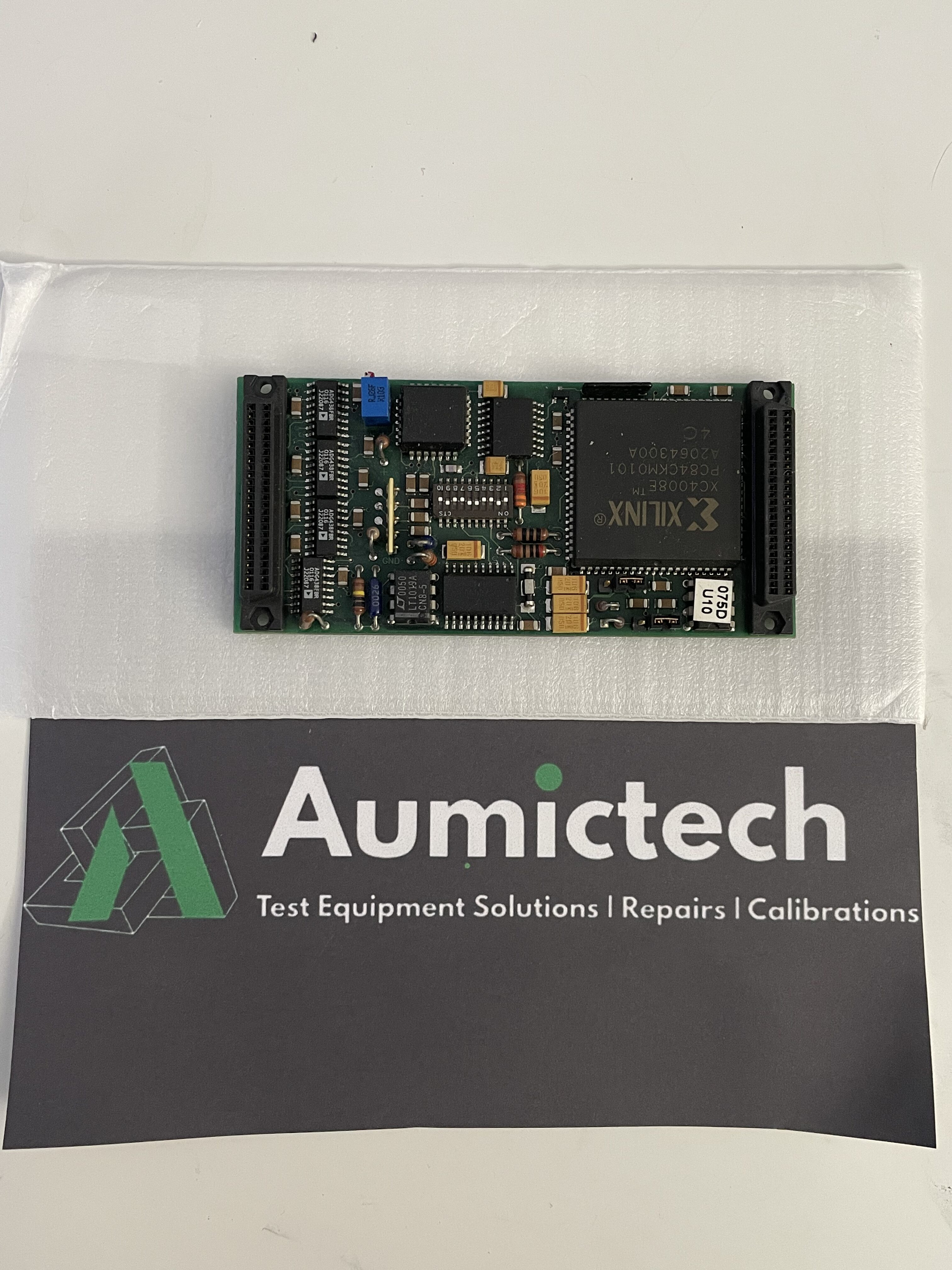

Acromag IP330 16-Bit A/D Analog Input Module

The Acromag IP330 is a 16-bit Analog-to-Digital (A/D) input module designed for industrial applications requiring high-resolution data acquisition. It offers flexibility in input configurations and supports a wide range of input voltage ranges, making it suitable for monitoring and controlling various analog signals in demanding environments. The module utilizes Surface Mounted Technology (SMT) for high channel density and can be integrated with carrier boards to expand channel capacity.

### Technical Specifications

**Analog Inputs:**
* **Resolution:** 16-bit A/D converter.
* **Input Configuration:** 16 differential or 32 single-ended channels.
* **Input Ranges:**
* ±5V
* ±10V (Requires ±15V external supplies)
* 0-5V
* 0-10V (Requires ±15V external supplies)
* **Programmable Gains:** 1x, 2x, 4x, 8x for individual channels.
* **System Accuracy:** 2 LSB (0.0030%) typical (with software calibration, gain=1, at 25°C).
* **Data Format:** Straight binary or two’s compliment.
* **Input Overvoltage Protection:**
* With power on: Vss -20V to Vdd 40V.
* With power off: -35V to 55V.
* **Common Mode Rejection Ratio (60Hz):** 96dB typical.
* **Channel-to-Channel Rejection Ratio (60Hz):** 96dB typical.

**Performance:**
* **Maximum Throughput Rate (Single Channel):**
* 125 KHz maximum (8 µS/conversion).
* 66 KHz (15 µS/conversion) recommended for specified accuracies.
* **Maximum Throughput Rate (16 Differential Channels):** 4.2 KHz (240 µS/16 channels).
* **Maximum Throughput Rate (32 Single-Ended Channels):** 2.1 KHz (480 µS/32 channels).
* **Conversion Time:** 8 µS/conversion (IP330). (Note: The IP330A variant offers a 5 µS/conversion time, reaching 200 KHz).
* **Data Sample Memory:** Individual channel mailbox with one or two storage buffer registers per channel.
* **Scanning Modes:**
* **Burst Mode:** Scans selected channels at the maximum conversion rate.
* **Uniform Mode:** Performs conversions at user-defined intervals.
* Can scan continuously or execute a single cycle upon receiving a trigger.

**Triggers:**
* **A/D Triggers:** External and software triggers supported.
* **External Trigger Input:** TTL compatible, active low edge-sensitive signal. Minimum duration of low state is 500n seconds.
* **External Trigger Output:** Can output hardware-generated triggers for synchronization of multiple modules.
* **Timed Periodic Triggering:** Utilizes a programmable Timer Prescaler (8-bit) and Conversion Timer (16-bit) to generate variable time periods from 8 µS to 2.0889 seconds.

**Interrupts:**
* **Post-Conversion Interrupts:** Can be configured to generate an interrupt after completion of a single channel conversion or a group of channels.
* **Interrupt Signal:** INTREQ0* signal issued to the carrier.
* **Interrupt Acknowledge:** ROAK (Release On Acknowledge) mechanism.
* **Interrupt Service Routine Vector:** 8-bit vector provided on data lines D0 to D7 during an acknowledge cycle.

**Electrical:**
* **Power Consumption:**
* +5V: 40mA.
* +12V from P1: 20mA.
* -12V from P1 or ±15V through P2: 15mA.
* (Note: IP330A variant has higher +5V requirements: 65mA typical, 200mA maximum).

**Environmental:**
* **Operating Temperature:**
* 0°C to 70°C (Standard IP330 model).
* -40°C to 85°C (IP330E model).
* **Storage Temperature:** -55°C to 100°C.
* **Relative Humidity:** 5% to 95% non-condensing.
* **MTBF:** 798,625 hours at 25°C (MIL-HDBK-217F, Notice 2). (Note: MTBF for IP330A may vary; consult factory).

**Physical:**
* **Form Factor:** Single size Industry Pack (IP) module.
* **Technology:** Surface Mounted Technology (SMT).
* **Integration:** Four units can be mounted on a carrier board for up to 64 differential or 128 single-ended channels per VMEbus or ISA bus slot.

**Compatibility:**
* **IP Compliance:** Meets IP specifications per ANSI/VITA 4-1995.
* **Data Transfer Cycle Types:** Input/output (IOSel*), ID read (IDSel*), Interrupt select (INTSel*).
* **Access Times (8MHz clock):**
* ID PROM read: 1 wait state (375nS cycle).
* I/O space read/write: 1 wait state.
* Interrupt select cycle read: 1 wait state.
* Mailbox I/O read: 1 wait state.
* 3 wait states if ongoing internal mailbox write.
* **Carrier Cards:** Acromag offers a selection of Industry Pack Carrier Cards.

**Isolation:**
* **Non-Isolated:** The IP330 is non-isolated, meaning there is electrical continuity between logic and field I/O grounds. Field I/O connections are not isolated from the carrier board and backplane. Careful installation is recommended to prevent noise pickup and ground loops.
