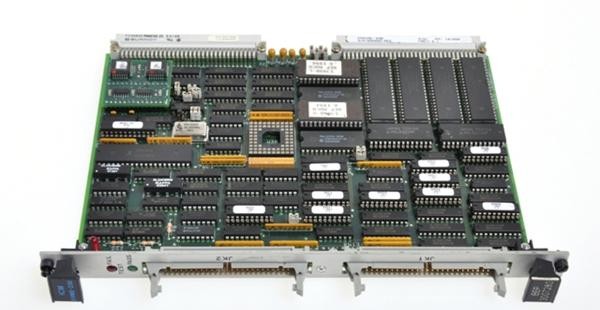

Acromag / Xembedded / Xycom XVME-230 Intelligent Counter Module

The Acromag XVME-230 is an intelligent counter module for VMEbus systems that delivers independent counting and timing measurement across 16 channels with up to 5 MHz counting rates. Built around a 10 MHz 68000 microprocessor with on-board intelligence, the module autonomously handles time-consuming counting functions while reducing host processor overhead. Four programmable counting circuits manage up to 16 simultaneous counting functions through configurable CLOCK and GATE inputs. The Xycom Automation intelligent I/O kernel coordinates measurement and control operations via the VMEbus with interrupt support. Commands are issued through the PC protocol to eight logical channels, with real-time data transfer enabling responsive process control and data acquisition in industrial automation environments.

– Technical Specifications

• On-board Processor: 10 MHz 68000 CPU
• Counting Channels: 16 independent channels
• Counting Rate: Up to 5 MHz per channel
• Counting Circuits: Four programmable circuits, each supporting four CLOCK inputs and four GATE inputs
• Data Transfer: Low-latency capabilities for real-time processing
• Memory: EPROM-based firmware storage with dual-access RAM
• Command Protocol: PC protocol sent to eight logical channels
• Interrupt Control: On-board circuitry with interrupt request support

– Key Features

• 16 independent simultaneous counting functions via four configurable counting circuits
• Intelligent 68000-based kernel reduces host CPU workload
• Buffered counter I/O signals on two 50-pin connectors (JKI and JK2)
• Enhanced EMI/RFI shielding for signal integrity in electrically demanding environments
• Low-latency real-time data transfer for time-critical applications
• Interrupt-driven event handling

– Typical Applications

• Industrial process measurement and control
• High-speed event counting and timing
• Real-time data acquisition systems
• VMEbus-based automation platforms

– Compatibility & Integration

Full VMEbus standard compliance. Counter I/O connects via two 50-pin connectors. Operates as a slave module receiving commands through the PC protocol interface.
