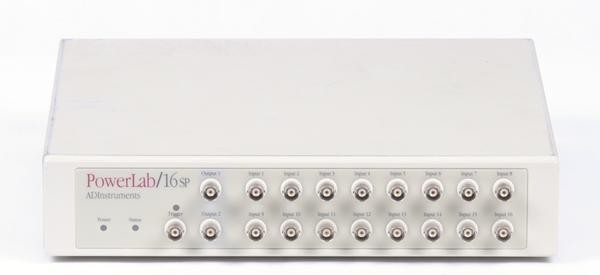

ADInstruments PowerLab/16SP Data Recording Unit

The ADInstruments PowerLab/16SP is a 16-channel data acquisition unit designed for life science research requiring high-fidelity physiological signal recording. The system captures biological data across neurophysiology, sleep studies, and isolated tissue applications with 16-bit resolution and continuous disk recording at up to 200,000 samples per second (400,000 samples per second aggregate). Its single-ended analog inputs accept 12 selectable full-scale ranges from ±2 mV to ±10 V, enabling precise measurement of both small and large amplitude signals. AC or DC coupling and wide-range low-pass filtering accommodate diverse signal conditioning requirements. The PowerLab/16SP connects via High Speed USB 2.0 or SCSI interfaces and includes two independent stimulator outputs, external trigger input, digital I/O for instrument control, and an I2C expansion port supporting up to 16 additional Front-end channels at communication rates to 10,000 bits/s. Pod (DIN) connectors provide alternative input paths for signal conditioning integration. The unit pairs directly with ADInstruments LabChart and Scope software platforms for data analysis and experimental control.

– Technical Specifications

• Analog Input Channels: 16 single-ended inputs (BNC connectors)
• Resolution: 16-bit
• Sampling Rate: 200,000 samples/second continuous to disk; 400,000 samples/second aggregate
• Full-Scale Ranges: ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V, ±0.1 V, ±50 mV, ±20 mV, ±10 mV
• Coupling: AC or DC
• Filters: Low-pass filter array
• Analog Outputs: Two independent stimulator channels
• Trigger: One external trigger input (BNC); signal triggering supported
• Digital I/O: Supported
• Expansion Port: I2C at up to 10,000 bits/s (supports up to 16 Front-end channels)
• Interfaces: High Speed USB 2.0 and SCSI
• Pod Connectors: DIN connectors available with I2C functionality and alternative analog inputs

– Key Features

• 16-bit precision across 12 independently selectable gain ranges
• Sustained high-speed disk recording without data loss
• AC/DC coupling flexibility for varied signal sources
• Expandable architecture via I2C for additional front-end signal conditioning
• Dual stimulator outputs for paired recording and stimulus delivery

– Typical Applications

• Neurophysiology and electrophysiology
• Sleep medicine and polysomnography
• Isolated tissue and organ bath research

– Compatibility & Integration

Operates with ADInstruments LabChart and Scope software. Compatible with ADInstruments signal conditioners, transducers, and third-party instruments through multiple connector standards and interface options.
