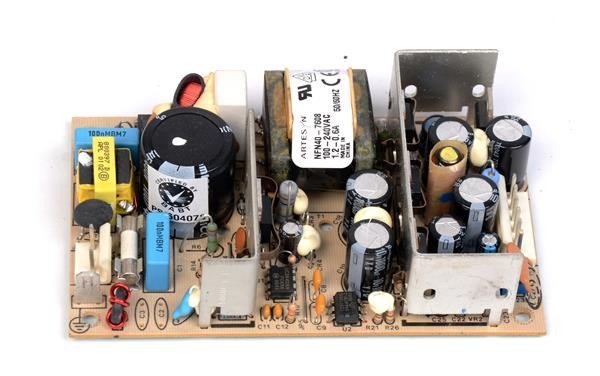

The Advanced Energy/Artesyn NFN40-7608 is a 40-watt open-frame AC-DC power supply board engineered for integration into distributed electronic systems. Operating across universal input voltage (85–264 VAC, 120–370 VDC) at 47–63 Hz, it eliminates regional supply constraints for global deployment. This triple-output converter delivers +5.1V, +12.0V, and -12.0V rails with load regulation down to zero load, meeting EN55022 Class B and FCC Part 15 Class B emissions standards. Fixed-frequency operation minimizes conducted noise, while overvoltage and short-circuit protection safeguard downstream circuitry.
– Technical Specifications
Power & Thermal
• 40W output (convection cooled); 50W with 20 CFM forced air
• Efficiency: 70%
• Operating altitude: 10,000 feet maximum; 40,000 feet non-operating
• Humidity: 5–80% RH non-condensing
Output Configuration
• Output 1: +5.1V, 3A continuous / 7A peak, ±50mV ripple, ±2.0% load regulation
• Output 2: +12.0V, 2A continuous / 3A peak, ±120mV ripple, ±5.0% load regulation
• Output 3: -12.0V, 0.35A continuous / 1A peak, ±120mV ripple, ±5.0% load regulation
• Line regulation (main): ±0.2%; (auxiliary): ±1.0%
• Transient response (+5V, 1.5A–3A step): ±120mV max, 500µs recovery
• Temperature coefficient: ±0.02%/°C across all outputs
Input Characteristics
• Input frequency: 47–63 Hz
• Surge current (cold start): 12A max @ 132 VAC; 24A max @ 264 VAC
• Isolation voltage: 3 kVAC
Protection & Compliance
• OVP (+5V): 125% ±15% Vout
• Short-circuit: Single outputs indefinite; multiple outputs short-term
• Certifications: BABT, UL, CSA, EN60950, IEC950, ITE
– Key Features
• Triple regulated output with independent overvoltage protection
• Fixed-frequency operation for predictable EMI characteristics
• Regulation maintained at zero load across all rails
• Compact dimensions: 5.00″ × 3.00″ × 1.20″
– Typical Applications
1U rackmount systems, industrial controllers, medical instrumentation, telecommunications equipment requiring multi-rail DC distribution.
– Compatibility & Integration
Designed for direct PCB integration with universal mains input simplifying worldwide system deployment. Meets UL 60950, CSA, and IEC 950 safety standards.
