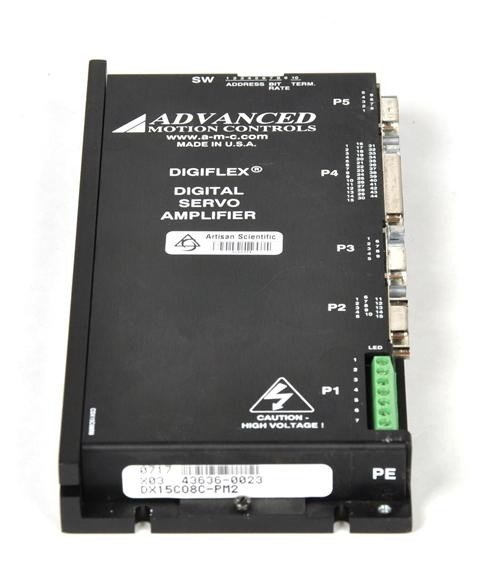

The Advanced Motion Controls DX15CO8 is a digital servo amplifier engineered for precision motion control across industrial automation, robotics, and demanding multi-axis applications. It delivers closed-loop control of brushed DC and brushless AC servo motors in torque, velocity, or position modes, with support for nine feedback technologies and multiple command sources including CAN networking.
– Technical Specifications
Motor & Control
• Motor types: Brushed DC, Brushless AC servo motors
• Operating modes: Torque, velocity, position
• Interpolated position mode: Cubic interpolation for multi-axis control via CAN
• Homing routine: Home switch input and/or encoder index pulse
Power Stage (DX15CO8, DX15CO8-SRC)
• DC supply voltage: 24–75 VDC
• Peak current: 15 A (heatsink temperature <50°C)
• Maximum continuous current: 8 A
• Minimum load inductance: 250 µH
• Four-quadrant regenerative operation supported
Logic Supply
• Logic voltage: 7.5 to 13 VDC
• Logic current: 150 mA maximum
• Input power: 10 W maximum
– Key Features
Feedback & Sensing
Dual encoder input, auxiliary encoder input, Hall sensors, tachometer, incremental encoder, absolute encoder (EnDat®, Hiperface®, BiSS® C-Mode), resolver, and 1 Vp-p Sin/Cos encoder support enable flexible sensor integration.
Command Sources
Internal generation, external analog input (±10 V), auxiliary encoder, preset index table, and CANopen command inputs provide multiple motion instruction methods.
Parameter Management
All drive and motor parameters are stored in non-volatile memory for persistent configuration across power cycles.
Protection
Comprehensive built-in safeguards include over-voltage, under-voltage, over-current, over-temperature with pre-warning, and phase-to-phase/phase-to-ground short-circuit protection.
– Interfaces & I/O
Communication
• CANopen (DS301, DSP-402) with isolated CAN bus interface
• DIP-switch configurable CAN address and bit rate selection
• Windows-based DigiFlex® DriveWare setup software
Digital I/O
• 7 programmable isolated digital inputs (sinking; sourcing optional via -SRC variant)
• 8 programmable isolated digital outputs (sinking)
• Dedicated isolated limit and home switch inputs
Analog I/O
• 3 programmable analog inputs (12-bit resolution)
• 1 programmable analog output (10-bit resolution)
• Monitored signals: Current, velocity, fault status
– Compatibility & Integration
The DX15CO8 integrates into CANopen networks for distributed motion control. Dual-loop feedback architecture supports complex servo dynamics. Wide supply voltage tolerance (24–75 VDC) suits diverse industrial power distributions.
