Advanced Power Design VXI302.22 Dual Channel Programmable Power Supply

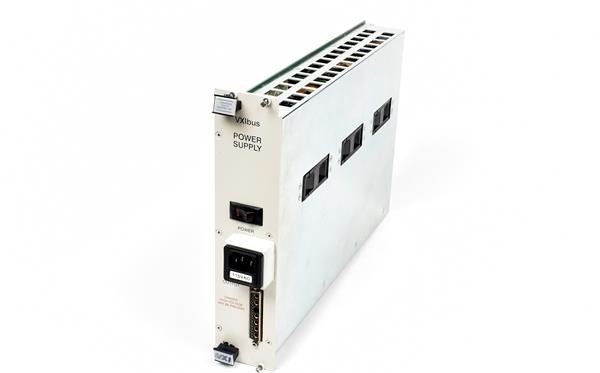

The Advanced Power Design VXI302.22 is a dual-channel programmable power supply designed for integration into VXI-based automatic test equipment (ATE) systems. This C-size VXI module offers precise voltage and current control for applications requiring reliable and accurate power delivery in laboratory testing, automated test equipment, and system integration.

### Technical Specifications

**General:**
* **Form Factor:** VXI C-Size, Dual Slot
* **Number of Outputs:** Dual Channel
* **Compatibility:** Designed for direct installation into standard VXI card cages.
* **Programming:** Comprehensive programming capabilities.
* **Interface:** User-friendly interface.
* **Power Delivery:** Reliable and accurate.

**Output Stages (Family of available stages):**
* Each output stage provides 200W of continuous power.
* **Voltage Options (per output stage):**
* P20: 0-20 VDC
* P65: 0-65 VDC
* P120: 0-120 VDC
* **Current Options (FS – Full Scale, MAX – Maximum, per output stage):**
* **For P20:**
* I FS: 10.0 A
* I MAX: 10.0 A
* **For P65:**
* I FS: 3.1 A
* I MAX: 10.0 A
* **For P120:**
* I FS: 1.67 A
* I MAX: 5.00 A
* **Power Rating (per output stage):**
* P20: 200W
* P65: 200W
* P120: 200W

**Performance Characteristics (Per Output Stage):**
* **Noise (RMS):**
* P20: 8 mV
* P65: 8 mV
* P120: 10 mV
* **Noise (Peak-to-Peak):**
* P20: 35 mV
* P65: 35 mV
* P120: 40 mV
* **Programming Accuracy – Voltage:**
* P20: 3 mV
* P65: 3 mV
* P120: 20 mV
* **Programming Accuracy – Current:**
* P20: 3 mA
* P65: 3 mA
* P120: 2 mA
* **Readback Accuracy (RB Accy) – Voltage:**
* P20: 1 mV
* P65: 1 mV
* P120: 1 mV
* **Drift:** 0.05% per degree Celsius

**Programming and Control:**
* **Operation Modes:** Constant Voltage (CV), Constant Current (CC)
* **Resolution:**
* Programming: 16 bits
* Readback: 20 bits
* **Output Sequencing:**
* Max States: 20
* Dwell Times: 5 mS to 65 mS, +/- 2 mS
* **Remote/Local Sense:** Supports remote sensing, allowing for up to 50% output voltage drop across sense leads.

**Internal Features:**
* **Input Power Factor Correction:** Integrated circuitry for efficient power usage.
* **Built-in Self-Test:** Firmware for diagnostic testing.
* **Software Calibration:** Firmware support for calibration procedures.
* **Output Isolation Relays:** For isolating outputs.
* **Internal 6 1/2 Digit Readback:** High-resolution measurement of output parameters.
* **Over Voltage Protection:** Adjustable from 0 to Full Scale (FS), with output down-programming and relay opening.

**Physical and Power:**
* **AC Input:** Supplied via a standard IEC connector on the front panel.
* **Backplane Power for Triple Output (Note: VXI302.22 is dual channel, this is general VXI600 series info):**
* DCV: +5V, +12V, -12V, +25V
* IPM: 1.5A, 2.3A, 0.1mA, 1.5A
* IDM: 1.3A, 2.1A, 0.1mA, 1.1A
