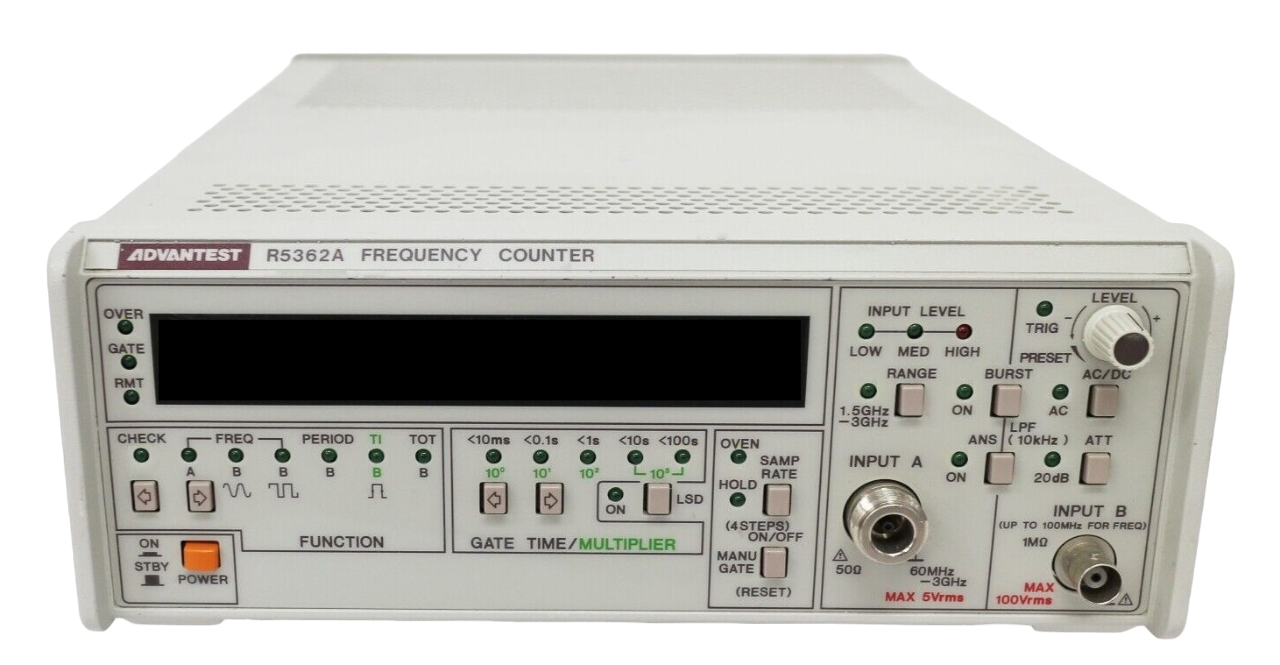

Advantest R5362A Frequency counter

The Advantest R5362A is a precision frequency counter engineered for accurate frequency and time interval measurements across wide ranges. Dual-channel architecture supports low-frequency measurements from 0.2 mHz to 100 MHz (Input B) and RF measurements spanning 60 MHz to 3 GHz (Input A), with selectable low-pass filtering for noise rejection. A 9-digit display delivers high-resolution readouts with sampling at approximately 80 ms intervals. The instrument combines a thermostatically controlled crystal oscillator for timing stability with flexible triggering from -1.2 V to +1.2 V and integrated burst-wave measurement capability. Time interval analysis spans 200 ns to 9000 s with display resolution down to picoseconds. Measurement accuracy incorporates trigger error, 1-count quantization, and reference time stability components.

– Technical Specifications

• Frequency Range (Input A): 60 MHz to 3 GHz across dual bands
• Frequency Range (Input B): 0.2 mHz to 100 MHz (LPF ON); 0.8 mHz to 100 MHz (LPF OFF)
• Time Interval Range: 200 ns to 9000 s
• Display: 9 digits with approximately 80 ms sampling rate
• Trigger Level: -1.2 V to +1.2 V, continuously variable
• Measurement Accuracy: ±trigger error ±1 count ±reference time accuracy
• Oscillator: Thermostatically controlled high-stability crystal (OCXO)
• Operating Temperature: +0°C to +55°C
• Storage Temperature: -40°C to +55°C
• Maximum Altitude: 25,000 ft
• Power Supply: AC (120 V/60 Hz standard), DC (+10 to +30 V), or battery (TR15801 series, lead-acid or Ni-Cd)

– Key Features

• Low-pass filter for 10 kHz noise rejection
• Burst-wave measurement with switchable enable
• Trigger indicator LED display
• Time unit multipliers: 100, 10¹, 10², 10³
• Time display formats: ps, ns, µs, ms, s, ks
• BNC input connectors with 50-ohm cable compatibility

– Typical Applications

• RF and microwave frequency validation
• Precision timing and phase measurement
• Component testing in research and manufacturing
• Low-frequency oscillator characterization

– Compatibility & Integration

• Compatible with TR1644 Calculation Unit
• Accepts TR15801 series battery packs
• Factory options available: 20, 21, 22, 23 (reference time variants), 39 (Ni-Cd backup battery, built-in)
