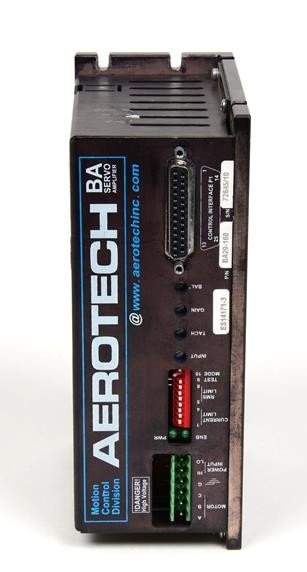

The Aerotech BA20-160 is a high-performance servo amplifier for precise DC motor control in industrial automation and robotics. It drives both brush and brushless DC motors with self-commutation via Hall effect feedback, delivering peak currents to 20 A and continuous output at 10 A across a 24–160 VDC bus. The amplifier combines transformer isolation between control and power stages with opto-isolated drive and feedback signals, ensuring reliable operation in electrically demanding environments. An integral 5 VDC, 250 mA auxiliary supply powers encoders and Hall effect devices. Advanced thermal management and a rugged aluminum housing enable stable performance to 3000 RPM with minimal backlash through high-resolution feedback and sinusoidal current command generation.
– Technical Specifications
• Output Current: 20 A peak; 10 A continuous
• Bus Voltage Range: 24–160 VDC nominal (180–190 VDC overvoltage threshold)
• Input Power: 115 VAC, 50/60 Hz
• Auxiliary Supply: 5 VDC @ 250 mA
• Maximum Speed: 3000 RPM
• Motor Compatibility: Brush and brushless DC motors with Hall effect feedback
• Control Isolation: Transformer-isolated control voltage; opto-isolated drive, current feedback, and fault signals
– Key Features
• Self-commutation with Hall effect feedback signal conditioning
• Programmable parameter customization for application-specific tuning
• Integrated overvoltage monitor with optional shunt regulator activation
• High-resolution feedback system for minimal backlash motion control
• Smooth sinusoidal current output
• Aluminum housing with two-orientation heat sink mounting
• Complete fault condition protection
– Typical Applications
• Industrial automation and general factory control
• Robotics systems requiring precise positioning
• Power generation facilities
• Petrochemical processing equipment
– Compatibility & Integration
The BA20-160 operates as a standalone servo drive with transformer isolation and auxiliary 5 VDC output for sensor powering. Heat sink mounting to a larger thermally conductive surface is recommended to optimize thermal dissipation in sustained-operation environments.
