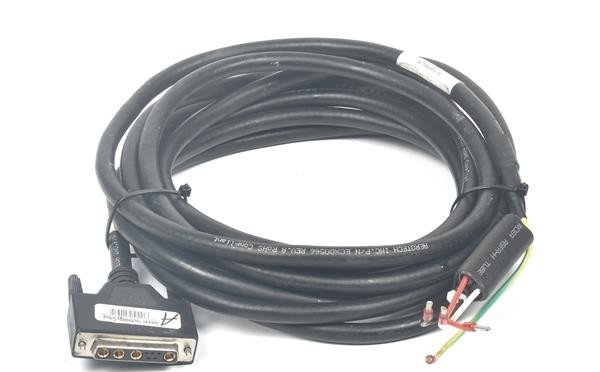

The Aerotech C19360-50 is a 5-meter motor cable that transmits power and feedback signals between NDrive motor controllers and compatible motors. This interface component connects high-current power conductors and signal lines—including encoder feedback and Hall-effect sensor signals—to enable reliable operation across brush, brushless, and stepper motor styles in precision motion applications.
– Technical Specifications
Cable Configuration
• Model: C19360-50
• Length: 5 meters
• Connector: 4-pin power connector with feedback signal connections
• Motor Configuration: 4-wire (4DU) for brushless motor compatibility
Electrical Performance
The cable supports NDrive controller output specifications:
• Bus Voltage: 10–320 VDC
• Output Voltage Range: 40–350 VDC (dependent on AC input to drive)
• Peak Output Current: 50 A(pk) to 150 A(pk) by drive model
• Continuous Output Current: 25 A to 75 A by drive model
• Control Supply: Single-phase 7–240 VAC or 85–240 VAC
– Key Features
• Dual-function design carries both motor power and feedback signals
• Supports encoder and Hall-effect sensor signal routing for commutation and position sensing
• Industrial-grade construction for durability in demanding environments
• 4-wire topology optimized for brushless motor systems
– Typical Applications
Precision motion control requiring integrated power delivery and closed-loop feedback. Motor-to-drive interconnection in multi-axis automation, laboratory instrumentation, and industrial positioning systems.
– Compatibility & Integration
Drives: NDrive CP, NDrive HPe, NDrive MP, NDrive CP10-MXU, NDrive MP10-IO
Motion Control Software: A3200
Motor Types: Brush, brushless, and stepper styles with standard 4-wire brushless configurations
