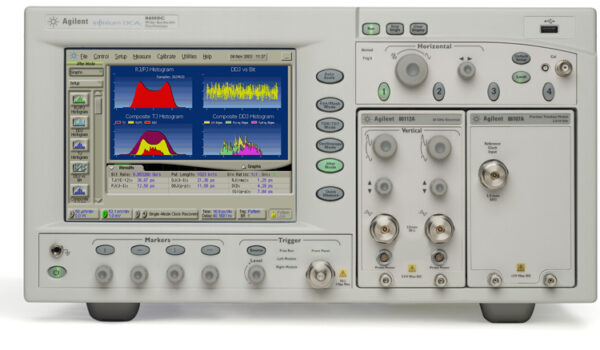

Agilent 86100C Infiniium DCA Oscilloscope Mainframe w 092,701

Agilent 86100C Infiniium DCA Oscilloscope Mainframe w 092,701,”The 86100C Infiniium DCA is a high-performance digital communications analyzer mainframe designed for characterizing signals in optical and electrical domains. With plug-and-play compatibility, it supports a wide range of modules to analyze data rates from 50 Mb/s up to 40 Gb/s. Featuring a sharp touchscreen interface and intuitive user controls, this mainframe enables precise eye diagram analysis, jitter measurements, and mask testing. It is especially effective in telecommunications and datacom testing environments, facilitating detailed evaluation of SONET, SDH, Ethernet, and Fibre Channel signals. The included 092 and 701 options enhance the capabilities further, offering advanced clock recovery and extended triggering functions. The system architecture is optimized for signal integrity analysis, ensuring extremely low jitter contribution and accurate waveform representation. Its modular design allows future upgrades and flexibility for evolving standards. Analysts and engineers rely on its real-time processing engine to capture and decode complex patterns accurately. Comprehensive software tools come pre-installed for automation and reporting. The 86100C mainframe is known for its reliability, ease of integration into lab setups, and exceptional accuracy. Whether used for compliance testing or deep signal characterization, it remains a staple tool in high-speed signal analysis applications.”
