Agilent/Keysight 08753-60170

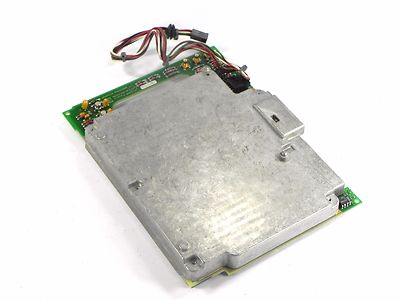

The Agilent/Keysight 08753-60170 is a graphics processor module designed as a replacement part for compatible Agilent/Keysight test and measurement equipment, specifically the 8753D, 8753E, and 8753ES network analyzers. This component is crucial for the display and processing of measurement data, ensuring the proper visualization and analysis of RF component characteristics. The module is an integral part of systems that perform S-parameter measurements, offering a wide frequency range and advanced analysis capabilities.

### Technical Specifications

* **Product Type:** Graphics Processor Module / Graphics System Processor (GSP) Assy
* **Manufacturer:** Agilent / Keysight / HP
* **Part Number:** 08753-60170

### Compatibility

The Agilent/Keysight 08753-60170 graphics processor module is primarily associated with the following Agilent/Keysight instrument series:

* **Agilent/Keysight 8753D Network Analyzer**
* **Agilent/Keysight 8753E Network Analyzer**
* **Agilent/Keysight 8753ES Network Analyzer**
* **Agilent/Keysight 8720D**

### Physical Characteristics

* **Form Factor:** Module / Assembly

### Electrical Characteristics

Specific electrical specifications for the 08753-60170 module itself are not detailed in the provided search results. However, it functions within network analyzers that typically operate with:

* **Frequency Range:** 30 kHz to 3 GHz, with an option for 6 GHz on compatible analyzers
* **Dynamic Range:** Up to 110 dB
* **Measurement Capabilities:** S-parameter measurements, magnitude and phase, group delay, time-domain measurements, frequency and power sweeps

### Interfaces

The module interfaces with the host instrument. The associated instruments (Agilent/Keysight 8753 series) typically feature:

* **Ports:** Parallel and Serial Ports for printers and plotters
* **Data Storage:** Built-in 3.5-inch floppy disk drive for saving and recalling data
* **Connectivity:** GPIB (IEEE 488) is common for programming and control

### Manufacturer Documentation

Manuals and documentation for related Agilent/Keysight products, which would include information relevant to the operation of the 08753-60170 module, can be found through the Keysight website. These include:

* User’s Guides
* Installation and Quick Start Guides
* Reference Guides
* Programmer’s Guides
* Service Guides

Why Choose Aumictech for Agilent/Keysight 08753-60170?
At Aumictech, we specialize in supplying high-performance Agilent/Keysight test and measurement components. Whether you need a reliable replacement graphics processor for your 8753D, 8753E, or 8753ES network analyzer, or require expert support to maintain your existing equipment, our team ensures your Agilent/Keysight 08753-60170 delivers maximum performance for your critical applications.
