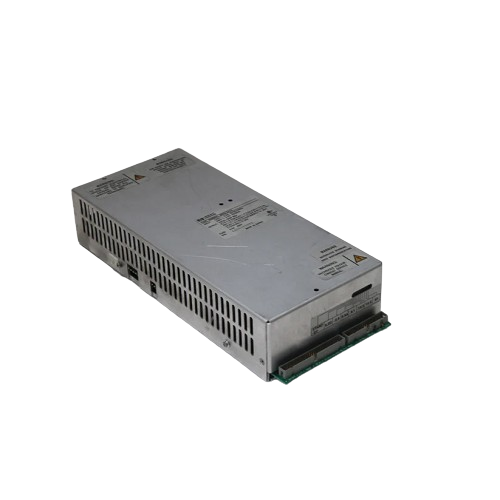

The Agilent/Keysight 0950-2315 is a regulated power supply assembly engineered for integration into HP and Agilent/Keysight test and measurement instrumentation. This internal component delivers stable DC power to synthesized signal generators and related RF test equipment, generating regulated voltage rails including +150Vdc and -150Vdc across main filter capacitors to support precision instrument operation.
– Technical Specifications
The 0950-2315 functions as a dedicated power supply module within larger instrument systems. Internal DC voltage generation includes +150Vdc and -150Vdc rails for main filter capacitors. A standby voltage output of 21Vdc is maintained, indicated by an on-board Standby LED. The assembly operates as an internal component without external user-accessible interfaces; all connectivity is internal to the host chassis.
– Key Features
• Regulated DC power delivery for precision RF instrumentation
• Generates multiple voltage rails including ±150Vdc main supplies
• 21Vdc standby voltage with status indication
• Internal integration design minimizes external interconnection complexity
• Designed for reliable operation within enclosed instrument chassis
– Typical Applications
The 0950-2315 serves as the primary power conditioning stage in microwave signal generation systems where voltage stability directly impacts output performance and spectral purity.
– Compatibility & Integration
This assembly is specified for use in the following Agilent/Keysight instruments:
• 83711B Synthesized CW Generator
• 83712B Synthesized CW Generator
• 83731B Synthesized CW Generator
• 83732B Synthesized CW Generator
• E2500B-508
• E2507B
Instruments equipped with option 1E5 may require disconnection of W45 from A11P4 and the fan cable harness from connector A11P1 during service procedures. The assembly is identified by part number 0950-2315 / 0950-9315.
