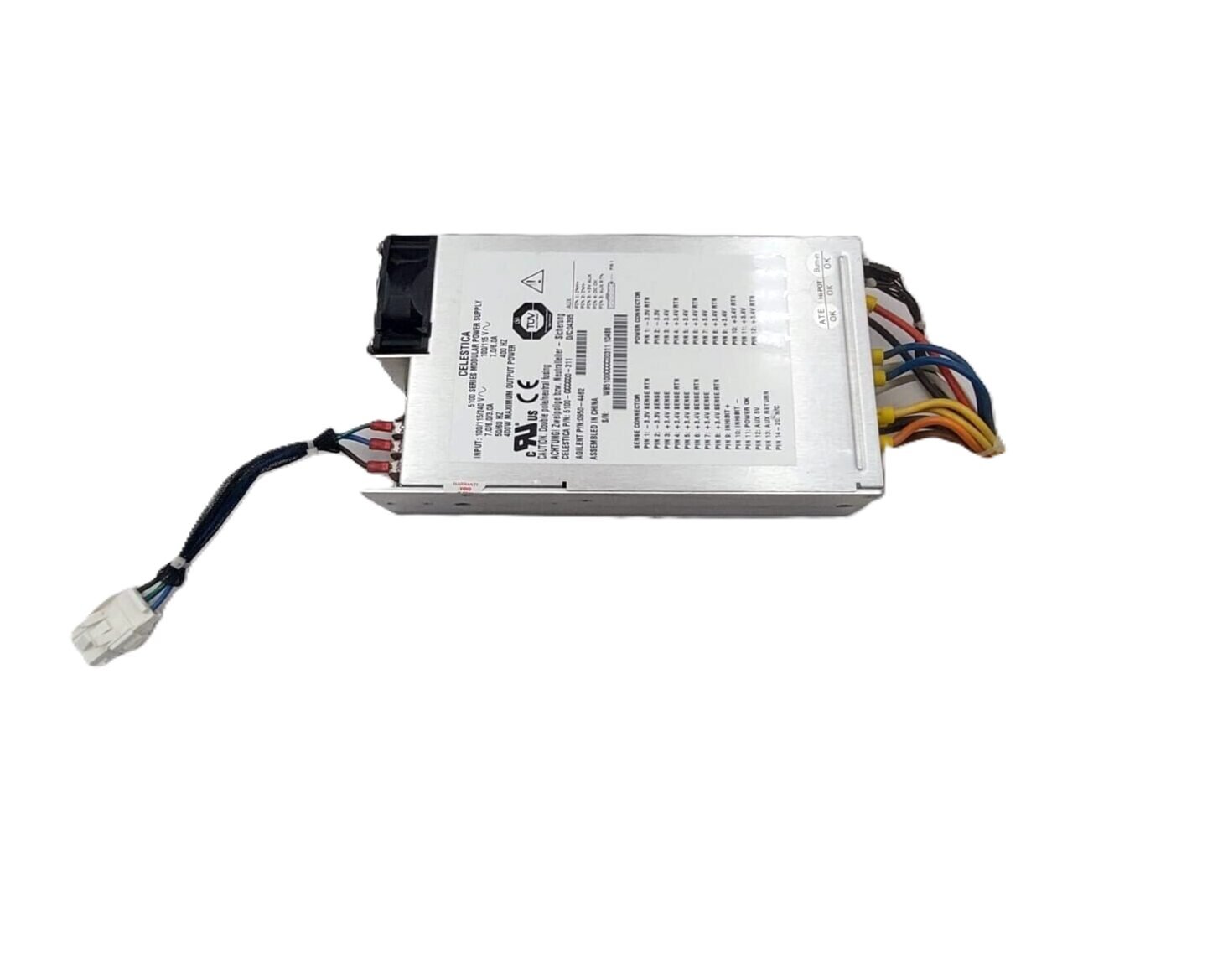

The Agilent/Keysight 0950-4462 is a modular power supply unit engineered for integration into Agilent/Keysight test and measurement systems. Part of the Celestica 5100 Series, this internal power module delivers stable, regulated power essential for accurate operation of complex electronic test equipment in laboratory and industrial environments.
– Technical Specifications
• Model: 0950-4462
• Series: Celestica 5100 Series
• Type: Modular power supply
• Power Rating: 400 W, 700 W, or 500 W (configuration-dependent)
• Input Voltage: 115 VAC to 230 VAC (autodetecting)
• Input Power Connection: Three-wire power cable with ground
• Form Factor: Modular unit for internal system integration
– Key Features
• Autodetecting line voltage input accommodates both 115 VAC and 230 VAC installations without manual reconfiguration
• Grounded three-wire power connection ensures proper electrical safety in test environments
• Modular architecture allows seamless integration into larger instrument platforms
– Typical Applications
The 0950-4462 provides DC power regulation for logic analysis systems and other modular Agilent/Keysight test instruments requiring stable, filtered power delivery in demanding measurement applications.
– Compatibility & Integration
Primarily specified for use in the Agilent/Keysight 16900A Logic Analysis System. Compatible with other Agilent/Keysight equipment requiring this specific power output configuration and internal form factor. The 16900A system, which incorporates this supply, supports LAN (10/100 BaseT, optional Gbit LAN), USB 1.1, parallel, serial, external video, calibration BNC, and Clock in BNC connectivity.
