Agilent/Keysight 16517

The Agilent/Keysight 16517A is a high-speed synchronous timing analyzer module designed for use with the Agilent Technologies 16500 and 16700/16700B series logic analysis systems. This module facilitates the analysis of digital systems by providing advanced timing and state acquisition capabilities.

### Technical Specifications

* **Acquisition Modes:**
* **Timing Analysis:**
* Full-channel timing mode: Data sampled at up to 2 GHz.
* Half-channel timing mode: Data sampled at up to 4 GHz.
* **State Analysis:**
* Full-channel state mode: Utilizes a synchronous external clock up to 1 GHz.
* **Maximum Trigger Sequencer Speed:** 500 MHz.
* **Data Validity for Triggering:** Data must be valid for a minimum of 2.25 ns for triggering at speeds faster than 500 MHz.
* **Memory Depth:**
* Standard: 64 Kbytes.
* Half-channel timing mode: Memory depth doubles.
* **Clocking:**
* Requires a periodic clock from 20 MHz to 1 GHz.
* Clock edge is selectable (positive or negative).
* Oversampling capabilities up to a maximum of 2 GHz sample rate.
* **Setup and Hold Times:**
* Across pods (without manual adjustment): 750/750 ps.
* Across pods (with manual adjustment): 350/350 ps.
* Minimum setup/hold time for single-clock, single-edge acquisition.
* Single-clock, multi-edge setup/hold: adds 0.5 ns.
* Multi-clock, multi-edge setup/hold: adds 1.0 ns.
* **Triggering and Analysis:**
* One timer or counter per trigger sequence level, which restarts upon entry into each level.
* One occurrence counter per trigger sequence level.
* Capable of analysis of data, processor speed margin, bus analysis, and performance-intensive setup/hold analysis.

### Interfaces and Compatibility

* **Host Systems:** Compatible with Agilent Technologies 16500 mainframes and the Agilent Technologies 16501A Expansion Frame.
* **Data Channels:**
* Total of 17 channels.
* Pod 1 (LSB): 8 data channels and 1 external clock channel.
* Pod 2 (MSB): 8 data channels.
* Scalable up to 80 channels when four 16518A expansion cards are added.
* **Probing:** Supports standard general-purpose probing, User-Definable Interface (optional E2445A), and microprocessor/bus-specific interfaces (optional).

### Physical Characteristics

* **Module Type:** Multi-card module.

### Accessories and Probing

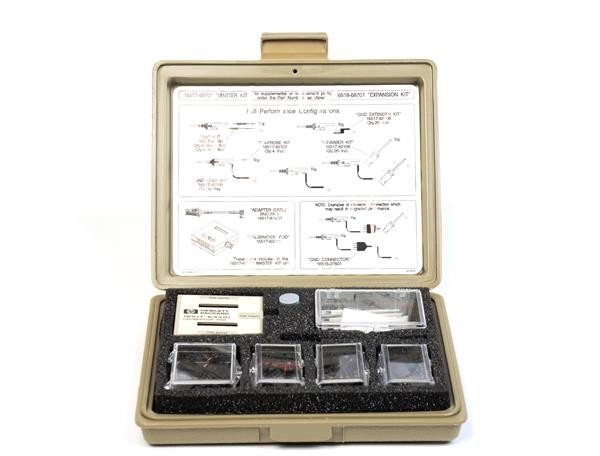

* **Probing Accessories:** Available accessories include SMD IC clip kits, ground extender kits, SMT kits, pin-probe kits, and ground lead kits.
* **Cables:** Shielded, 6-foot long cables containing eighteen 50-Ω transmission lines and 6 standard wires for assorted DC functions.
