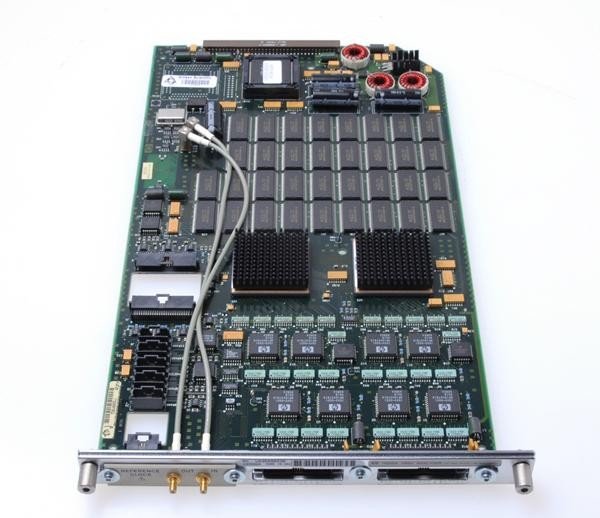

Agilent/Keysight 16556A

The Agilent/Keysight 16556A is a 68-channel logic analyzer module that extends the capabilities of compatible mainframes for advanced digital system debugging and validation. This module delivers 1 Megasample per channel memory depth with dual clocking modes—state analysis at 100 MHz and timing analysis up to 500 MHz (2 ns resolution)—enabling simultaneous, time-correlated acquisition across mixed signal types. The instrument supports up to 2048 levels of sequence triggering and real-time pattern recognition, making it suitable for complex digital circuit characterization.

– Technical Specifications

• Channels: 68 across 4 groups (up to 18 channels per group)
• Memory: 1 Megasample per channel
• State Clock Rate: 100 MHz maximum
• Timing Sampling Rate: 500 MHz maximum (2 ns resolution); 200 MHz full channel, 400 MHz half-channel conventional timing
• Threshold Range: -6 V to +6 V, adjustable in 50 mV increments
• Input Impedance: 100 kΩ || 8 pF
• Voltage Range: -10 V to +10 V
• Sequence Triggering: Up to 2048 levels
• Power: 100–240 V AC, 50–60 Hz
• Operating Temperature: 0°C to +50°C
• Dimensions: 180 mm H × 425 mm W × 490 mm D
• Weight: ~12 kg

– Key Features

• Flexible state and timing clocking modes on all channels simultaneously
• Full time-correlation between state and timing measurements
• Real-time pattern and sequence recognition across all 68 channels
• Adjustable input thresholds for mixed-voltage system analysis
• HP-IB (GPIB) remote control and data transfer interface
• Internal storage with external memory device support

– Typical Applications

• Digital design debugging and verification
• Complex digital circuit troubleshooting
• Electronic circuit validation

– Compatibility & Integration

Compatible with Agilent/Keysight 16700 Series and 16500C logic analysis systems. The 16700 Series requires software version A.02.70.
