Agilent/Keysight 16822A

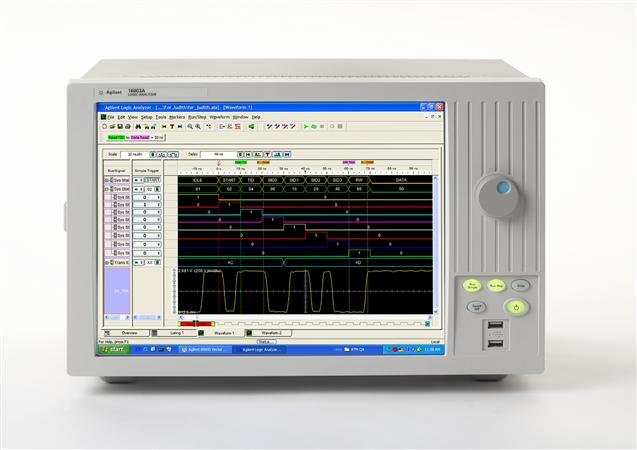

The Keysight/Agilent 16822A is a portable logic analyzer that integrates 68-channel signal capture with 48-channel pattern generation in a single instrument. Built around a 15-inch color touchscreen display, it delivers both state and timing analysis for digital system validation across complex designs. The analyzer captures signals at up to 450 MHz synchronous sampling and 4 GHz asynchronous timing zoom, with acquisition memory selectable from 1 M to 32 M depths. Its pattern generator operates at 300 MVector/s with 16 M vector depth, enabling device substitution, circuit initialization, and full-speed functional testing without external hardware. Signal integrity analysis runs simultaneously across all channels via eye diagrams, accelerating fault identification on high-speed buses. Threshold adjustment spans -5 V to 5 V in 10 mV increments with automated setup for single-ended measurements. The instrument connects via 10/100 Base-T LAN, six USB 2.0 ports, and standard 40-pin logic analyzer probes, with one PCI and one PCI Express x1 expansion slot for future instrumentation integration. Windows XP or Windows 7 compatibility supports Keysight’s native logic analyzer software stack.

– Technical Specifications

Acquisition and Analysis
• 68 logic analyzer channels
• 48-channel pattern generator
• Maximum acquisition depth: 32 M selectable (1 M, 4 M, 16 M, 32 M)
• State analysis up to 450 MHz with 500 Mb/s data rates
• Timing zoom: 4 GHz (250 ps resolution) with 64 K memory
• Conventional timing: 1.0 GHz half-channel / 500 MHz full-channel
• Transitional timing: 500 MHz
• Pattern generator: 300 MVector/s, 16 M vector depth

Signal Measurement
• Threshold adjustment: -5 V to 5 V in 10 mV increments
• Simultaneous eye diagrams on all channels
• Automated threshold and sample position setup

Display and Interface
• 15-inch color touchscreen
• 10/100 Base-T LAN port
• Six USB 2.0 ports (two front, four rear)
• One PCI expansion slot, one PCI Express x1 slot
• 40-pin logic analyzer probe compatible
• PS/2 mouse and keyboard support

– Key Features

• Deep memory up to 32 M with post-purchase upgrade capability
• Pattern generator substitutes missing boards, ICs, or buses
• Portable form factor for field deployment
• Windows XP and Windows 7 compatibility

– Typical Applications

• Complex digital system debugging and validation
• High-speed bus signal integrity analysis
• Circuit initialization and functional testing at full speed
• Hardware-in-the-loop simulation and device substitution

– Compatibility & Integration

Standard 40-pin probe interface supports legacy and current logic analyzer probe sets. Dual expansion architecture (PCI and PCI Express x1) enables modular instrument configuration. Multi-port connectivity—LAN, USB, and serial peripheral support—integrates into bench automation and remote test environments.
