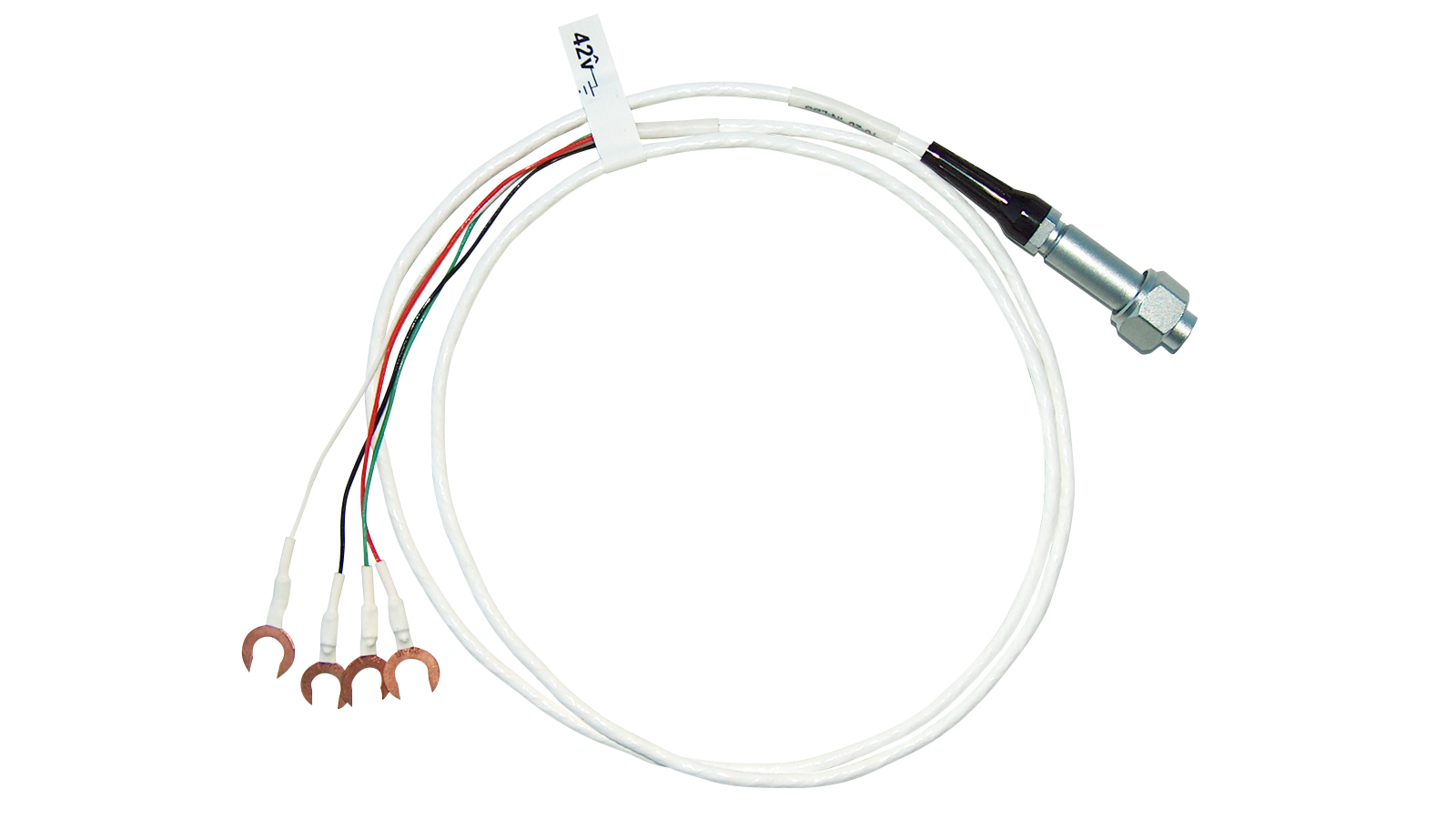

The Keysight 34102A is a low-thermal input cable assembly engineered specifically for the 34420A Nano Volt/Micro Ohm Meter. This 1.2 meter shielded 4-conductor cable minimizes thermal electromotive forces (EMFs) that degrade measurement fidelity in precision low-voltage and low-resistance applications. The cable terminates with a custom mating connector on one end and copper spade lugs on the other, providing direct interface to the 34420A instrument. Shielding and low-thermal construction preserve signal integrity where thermal gradients would otherwise introduce significant errors.
– Technical Specifications
• Cable Length: 1.2 m (48 inches)
• Conductor Configuration: 4-conductor, shielded
• Connector Type: Custom mating connector (34420A end) | Copper spade lugs (measurement end)
• Cable Weight: 0.06 kg
• Voltage Rating: 120 VDC
• Design: Low-thermal construction to suppress thermal EMF errors
– Key Features
• Shielded construction minimizes external noise coupling
• Low-thermal cable geometry reduces self-generated EMFs during sensitive measurements
• Custom connector ensures proper impedance matching with the 34420A
• Copper spade lugs enable secure, direct connection to measurement points
• Compact 1.2 m length suitable for bench and laboratory configurations
– Typical Applications
• Precision resistance measurements in the micro-ohm range
• Low-level DC voltage acquisition where thermal noise is a limiting factor
• Instrument calibration and characterization work
• Semiconductor device testing and parameter extraction
• Materials characterization requiring high-resolution electrical measurements
– Compatibility & Integration
This cable is exclusively designed for the Keysight 34420A Nano Volt/Micro Ohm Meter and is not compatible with other instruments or digital multimeters. It is the standard input cable supplied with the 34420A.
