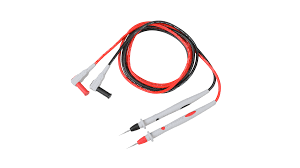

The Keysight 34133A is a precision test lead set engineered for signal connectivity in confined measurement environments. Built with spring-loaded pogo pin tips and right-angle shrouded banana plug terminations, these leads deliver reliable performance in dense circuit board layouts and small component testing. The kit provides two color-coded leads—red and black—each 1.2 m in length, rated for 1 kV CAT II and 3 A maximum current.
– Technical Specifications
• Connector Type A: Test Tip Probe / 4 mm Banana Plug Shrouded
• Connector Type B: 4 mm Right Angle Banana Plug, Shrouded
• Maximum Current Rating: 3 A
• Voltage Rating: 1000 V CAT II
• Cable Length: 1.2 meters (48 inches)
• Lead Length: Approximately 46.8 to 47.24 inches
• Included Components: Two test leads (one red, one black)
– Key Features
• Spring-loaded tip with crown point pogo pin design for consistent contact and repeatability
• Right-angle shrouded banana plug connectors minimize test area obstruction
• Compact, lightweight construction optimized for space-constrained applications
• Dual-conductor leads with color-coded identification (red/black) for polarity tracking
– Typical Applications
The 34133A excels in measurements involving small discrete components, high-density PCB layouts, and situations where lead geometry must accommodate tight spatial constraints. The pogo pin design ensures stable contact without deforming delicate test points.
– Compatibility & Integration
These leads interface with digital multimeters and laboratory test equipment featuring standard 4 mm banana plug inputs. The right-angle terminations make them particularly suited for benchtop setups where vertical or horizontal cable routing is required.
