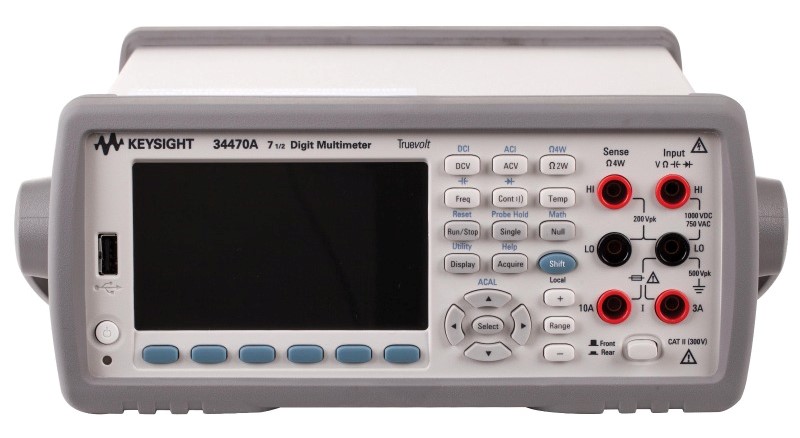

The Keysight 34470A is a 7.5-digit benchtop digital multimeter engineered for precision measurement across voltage, current, resistance, frequency, and specialized functions. Leveraging Truevolt technology—a patented analog-to-digital converter architecture—the instrument eliminates measurement errors from noise and injected current while maintaining metrology-grade accuracy guaranteed to ISO/IEC 17025 standards. It delivers 16 ppm basic DC voltage accuracy and reads up to 50,000 samples per second, making it suitable for demanding production, service, and research environments.
– Technical Specifications
Resolution & Accuracy
• 7.5 digits of resolution
• 16 ppm basic DC voltage accuracy
• 50,000 readings per second maximum
• 50,000 readings standard memory; expandable to 2 million with optional module
Voltage & Current Measurements
• DC Voltage: 100 mV to 1000 V
• AC Voltage RMS: 100 mV to 750 V
• DC Current: 1 µA to 10 A
• AC Current RMS: 100 µA to 10 A with true RMS via digital direct sampling; supports crest factors to 10× without additional error terms
Resistance, Frequency & Specialized Functions
• 2- and 4-wire resistance: 100 Ω to 1 GΩ
• Frequency measurement: 3 Hz to 300 kHz
• Period measurement included
• Continuity and diode test (5 V capable)
• Temperature measurement: RTD/PT100, thermistors, thermocouples
• Capacitance: 1.0 nF to 100.0 µF
Display & Interface
• 4.3-inch color graphical display with number, histogram, bar chart, trend chart, math, and statistics modes
• Dual-line display capability
• USB and LAN/LXI Core connectivity standard; optional GPIB available
• Digitizing mode with advanced triggering included
• Data logging and BenchVue software compatibility
Physical
• Benchtop: 261.2 mm W × 303.2 mm D × 103.8 mm H
• Weight: 3.76 kg
• Full accuracy operating range: 0 °C to 55 °C
– Key Features
• Auto-calibration compensates temperature drift
• Truevolt architecture balances resolution, linearity, accuracy, and speed
• 50,000 readings/second acquisition for transient capture and trend analysis
• Native LXI/USB automation eliminates external controllers
• Flexible memory expansion via optional 3446MEMU module
– Typical Applications
Production test and burn-in; component characterization; circuit troubleshooting; temperature monitoring via thermocouples or RTDs; frequency and period analysis; high-speed data acquisition in automated test environments.
– Compatibility & Integration
USB and LAN/LXI Core included. Optional GPIB interface (Option 3446GPBU) available. Direct integration with BenchVue enables multi-instrument visualization and remote monitoring. Standard test lead set (34138A) supplied.
