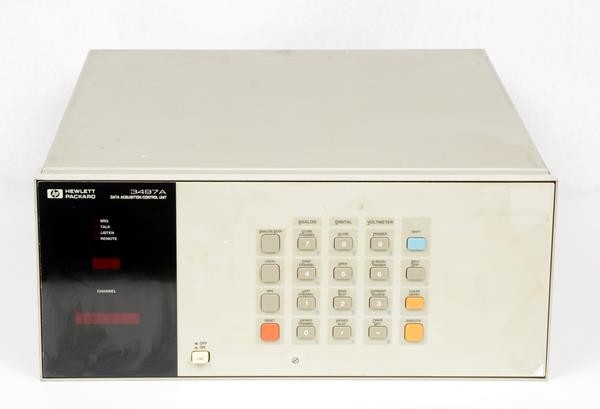

Agilent/Keysight 3497A

The Agilent/Keysight 3497A is a modular data acquisition unit built around a 5.5-digit integrating digital voltmeter with integrated current source for four-terminal resistance measurements. The mainframe accommodates one DVM assembly and up to five plug-in modules, enabling flexible configuration for multi-channel automated testing and data logging across DC/AC voltage, current, resistance, temperature, and frequency measurements.

– Technical Specifications

Mainframe Architecture
• Accommodates one DVM assembly and up to five plug-in assemblies
• DVM resolution: 5.5-digit integrating voltmeter
• Programmable current source for four-wire resistance measurement
• Reading rate: up to 600 readings per second (single channel); up to 250 channels per second (scan mode)
• Memory capacity: 50,000 time-stamped readings with overflow indication

Electrical
• Operating power: 110 V, 120 V, 220 V, or 240 V ±10%, 48–66 Hz, 150 VA
• Protective earth terminals provided

– Key Features

• Microvolt-level signal resolution suitable for thermocouple and strain gauge transducers
• System accuracy combines individual error terms from DVM, current source, and acquisition assembly
• HP-IB interface for ATE system integration and instrument control
• Plug-in module support includes relay multiplexers (with optional thermocouple compensation), FET multiplexers, digital input/interrupt modules, counters, strain gage/bridge completion assemblies, programmable voltage and current D/A converters, actuators, and breadboard assemblies

– Measurement Capabilities

• Voltage (AC and DC)
• Current (AC and DC)
• Resistance (2-wire and 4-wire)
• Temperature (thermocouples, RTDs, thermistors)
• Frequency and period

– Compatibility & Integration

The 3497A integrates with automated test equipment via HP-IB communication. Optional strain gage conditioner assemblies are available for 120 Ω (Option 070) and 350 Ω (Option 071) bridges. System accuracy specifications account for combined contributions from all active measurement circuit elements.
