Agilent/Keysight 41421B

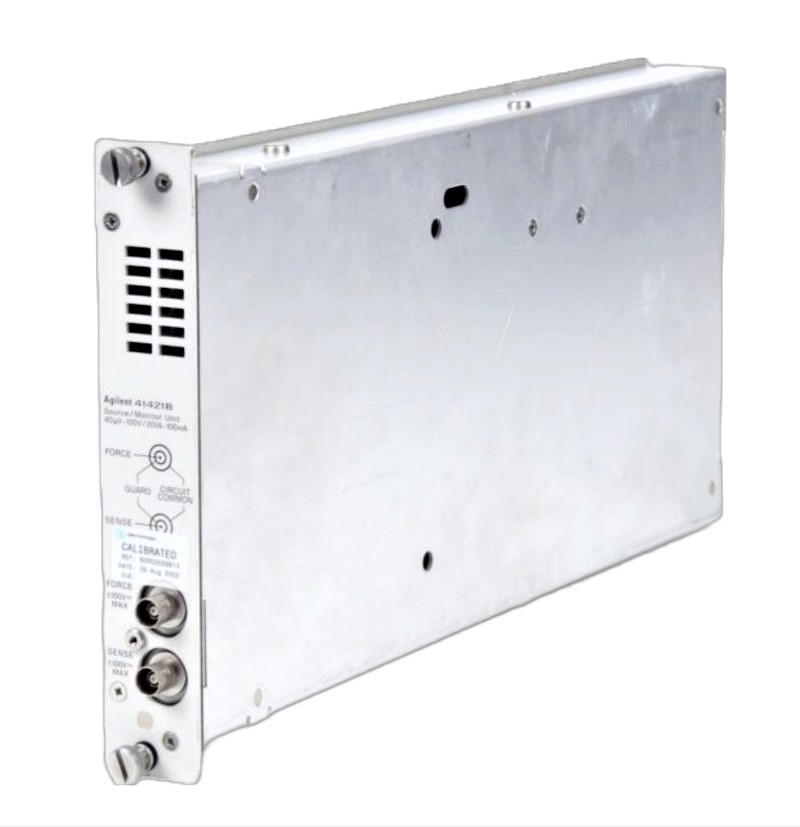

The Keysight/Agilent 41421B is a Source/Monitor Unit (SMU) plug-in module for the 4142B Modular DC Source/Monitor Mainframe. This single-slot module delivers precision voltage and current sourcing and monitoring across wide ranges, functioning as the equivalent of four separate instruments. With measurement resolution down to 40 µV and 20 fA, the 41421B supports both constant and pulsed sourcing modes, Kelvin (remote sense) connections, and user-definable compliance limits. Operating within a 2 W maximum power budget, it is suited for semiconductor device characterization, component testing, and precision measurements in development and manufacturing environments.

– Technical Specifications

Voltage Sourcing & Monitoring
• Range: ±40 µV to ±100 V
• Measurement resolution: 40 µV

Current Sourcing & Monitoring
• Range: ±20 fA to ±100 mA
• Measurement resolution: 20 fA

Pulsed Measurement Capability
• Pulse width: 1 ms to 50 ms (100 µs resolution)
• Pulse period: 10 ms to 500 ms (100 µs resolution)
• Maximum duty cycle: 50%

Power Budget
• Maximum: 2 W

Compliance Settings
• 10 µA range: voltage compliance ≤ 2 V
• 100 µA to 1 A range: voltage compliance ≤ 200 V

– Key Features

• Dual-mode operation: voltage source with current monitor, or current source with voltage monitor
• Four-instrument equivalent functionality in a single module
• Kelvin connection support for remote voltage sensing
• Target compliance settling time: 12 ms (with HP 41425A AFU)
• HP-IB (IEEE-488) programmable interface

– Typical Applications

• Semiconductor device characterization
• Component parameter testing
• Research and development measurements
• Manufacturing test environments

– Compatibility & Integration

Designed exclusively for the Keysight/Agilent 4142B Modular DC Source/Monitor Mainframe. Occupies one mainframe slot and communicates via proprietary interface and HP-IB protocol.
