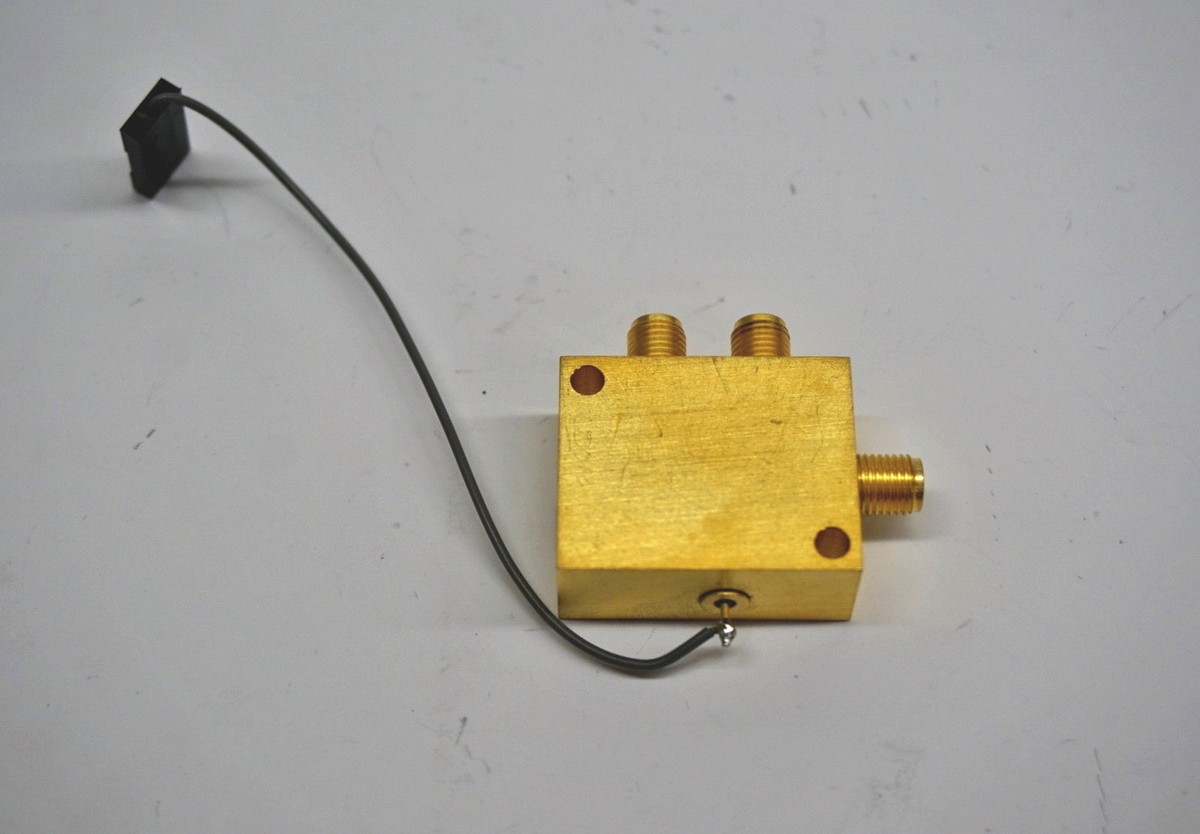

The Agilent/Keysight 5086-7327 is a diode switch component engineered for RF signal routing and switching within Agilent and Keysight test and measurement systems. Operating across 0.01 GHz to 8.4 GHz, this component delivers precise signal integrity in applications demanding reliable switching performance and optimized system operation across the DC-through-microwave spectrum.
– Technical Specifications
• Component Type: Diode Switch
• Manufacturer: Agilent / Keysight (formerly Hewlett Packard)
• Part Number: 5086-7327
• Frequency Range: 0.01 GHz to 8.4 GHz
• Interface: SMA connectors
• Physical Dimensions: 9 x 6 x 1 inches
• Weight: 1.3 lbs
– Key Features
• Operates across extended frequency range from DC-equivalent to 8.4 GHz microwave bands
• SMA connector interface standard for RF systems and test equipment
• Engineered for integration into production test and measurement platforms
• Designed to meet rigorous quality and reliability standards for switching applications
– Typical Applications
• RF signal routing in automated test equipment (ATE)
• Signal path selection in measurement and characterization systems
• Switching applications within broadband test instrumentation
• Multi-path RF signal distribution in laboratory and production environments
– Compatibility & Integration
The 5086-7327 is compatible with the Agilent/Keysight 83620x equipment series and integrates into systems requiring precision RF signal switching. As an original equipment component, it maintains compatibility with legacy and current Agilent/Keysight platforms designed for DC-to-microwave signal routing applications.
