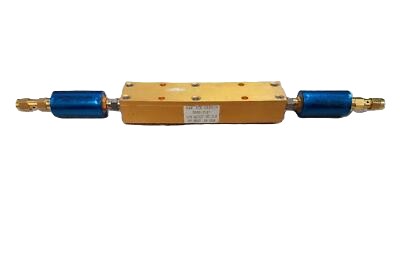

The Agilent/Keysight 5086-7517 is a dual directional coupler engineered for precision signal coupling in RF and microwave test and measurement systems. It delivers accurate signal sampling essential for characterizing RF and microwave components with the stability and reliability demanded in rigorous operational environments. The coupler operates at 50 Ohms impedance and finds primary application in scalar network analysis, power measurement, and system monitoring across laboratory and field test setups.
– Technical Specifications
• Component Type: Dual Directional Coupler
• Impedance: 50 Ohms
• Frequency Range: Suitable for systems operating up to 3 GHz; application context indicates high-frequency operation
– Key Features
• Signal sampling optimized for precision coupling and measurement accuracy
• Designed for demanding test environments requiring long-term stability
• Dual coupler configuration for bidirectional signal isolation and analysis
– Typical Applications
• Scalar network analysis
• RF and microwave power measurement
• System monitoring and characterization
• Component testing in network analyzer systems
– Compatibility & Integration
The 5086-7517 integrates with established Agilent/Keysight network analyzer platforms including the HP 8510C, HP 8517A, HP 8722D, HP 8722ES, and HP 8722ET. It is also used in HP 85110A-H series test set modules and the HP 86030A measurement system. This coupler is fundamental to network analyzer signal separation architecture and operates as a drop-in component across compatible instrument families.
