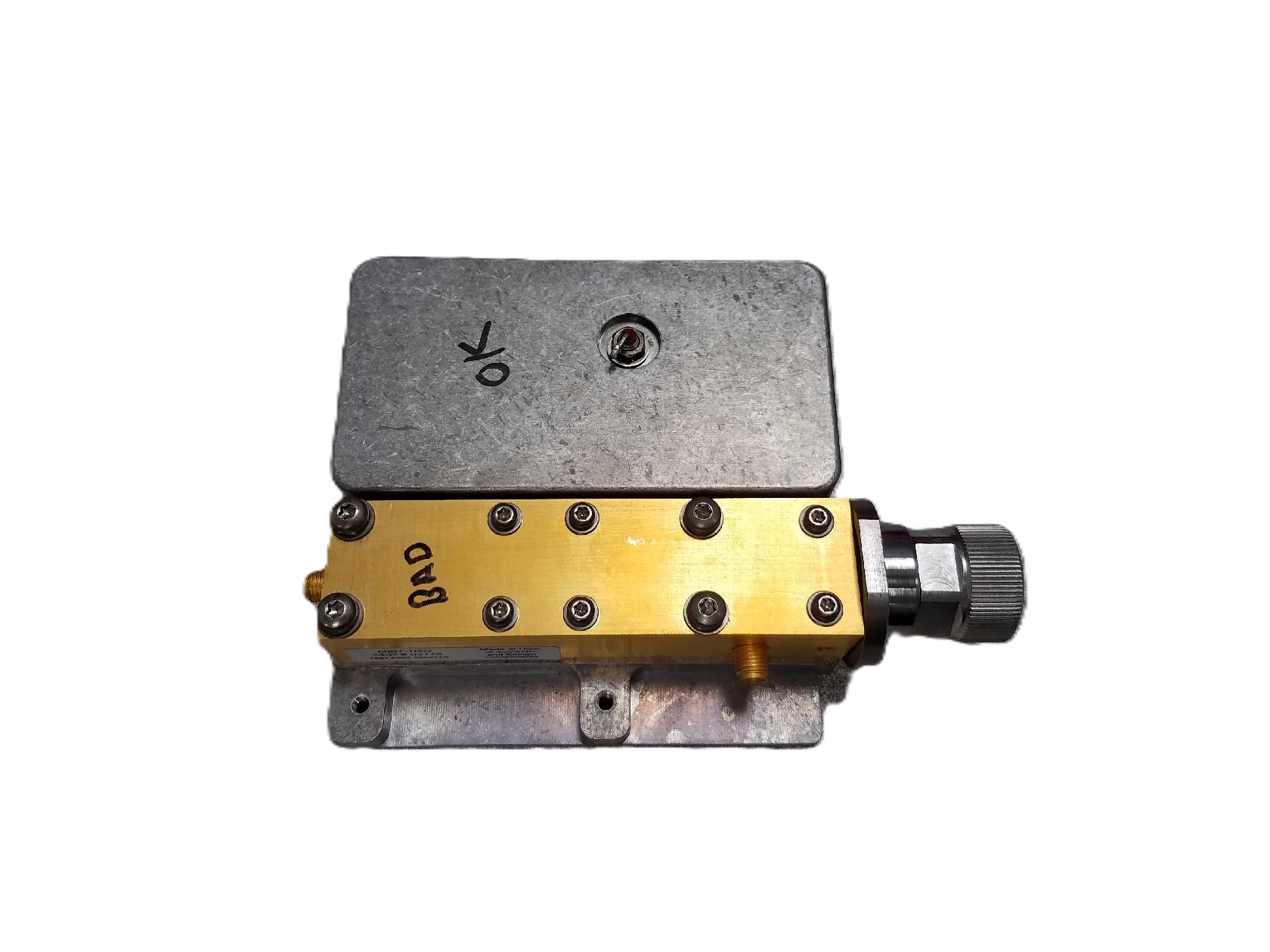

The Agilent/Keysight 5087-7007 is a 50 Ohm test port coupler engineered for precision signal distribution and measurement in RF and microwave testing environments. This component integrates into HP network analyzer systems to enable accurate signal coupling critical for detailed RF characterization and signal integrity assessment.
– Technical Specifications
• Impedance: 50 Ohms
• Product Type: Test Port Coupler
– Key Features
• Precision signal distribution for demanding electronic systems
• Direct integration with HP 8753E and 8753ES network analyzers
• Enables accurate signal coupling for RF and microwave measurements
• 50 Ohm impedance matched to standard test equipment interfaces
– Typical Applications
The 5087-7007 functions as a signal distribution component within network analysis systems. It supports precision RF and microwave testing where accurate signal coupling directly impacts measurement integrity and system performance.
– Compatibility & Integration
This test port coupler is purpose-designed for use with:
• HP 8753E Network Analyzer
• HP 8753ES Network Analyzer
The 5087-7007 integrates as a critical component within these analyzer platforms, facilitating the signal routing and coupling necessary for comprehensive RF and microwave characterization.
