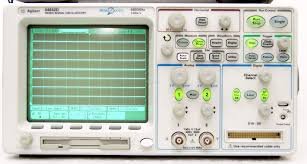

The Agilent/Keysight 54642D is a 500 MHz mixed-signal oscilloscope combining analog oscilloscope and logic analyzer functionality in a single instrument. With 2 analog channels and 16 digital logic timing channels, it captures up to 18 simultaneous signals at 2 GSa/s, making it ideal for engineers debugging complex interactions in microcontroller and DSP-based systems. The 8 Mpts record length and 8 MB MegaZoom memory provide deep capture capability with 32 intensity levels for signal visibility across varying signal densities.
– Technical Specifications
• Bandwidth: 500 MHz
• Analog Channels: 2
• Digital Logic Timing Channels: 16
• Sample Rate: 2 GSa/s
• Record Length: 8 Mpts
• Memory: 8 MB MegaZoom deep memory mapped to 32 intensity levels
• Vector Rate: 25 million vectors/sec
• Display: High-definition CRT with superior horizontal resolution
– Key Features
• Waveform Math: FFT, subtract, multiply, integrate, and differentiate functions
• Flexible Triggering: Edge and pulse width triggering; advanced protocol triggers for CAN, I2C, LIN, SPI, and USB
• CAN Trigger Module: Isolates and triggers on specific frame content for protocol-level debugging
• Autoscale Function: Automatically configures active channels, trigger modes, vertical sensitivity, and time base
• Measurement Tools: Quick Meas for automated measurements and manual cursor-based analysis
• Multi-Language Support: Quick Help available in 11 languages
• Connectivity: Built-in floppy, RS-232, and parallel ports; GPIB interface with deep memory transfer capability (typical transfer time <70 seconds for 2 MB over GPIB)
– Typical Applications
The 54642D is particularly well-suited for systems with clock speeds approaching 100 MHz, including microcontroller debugging, DSP development, and mixed-signal protocol analysis where simultaneous analog and digital observation is essential.
– Compatibility & Integration
Standard legacy interface support via RS-232, parallel, and GPIB enables integration into established lab environments and automated test systems.
